IDEC
HW-U10
Universal Contact Block, NO, IP20, Standard, Spring Up terminals, Accepts Ring/Fork Terminals
$6.02
Product image is representative only, please verify specifications.
HW1B-M4F10-W
Alt: Non-Cancellable, No Returns
$18.60

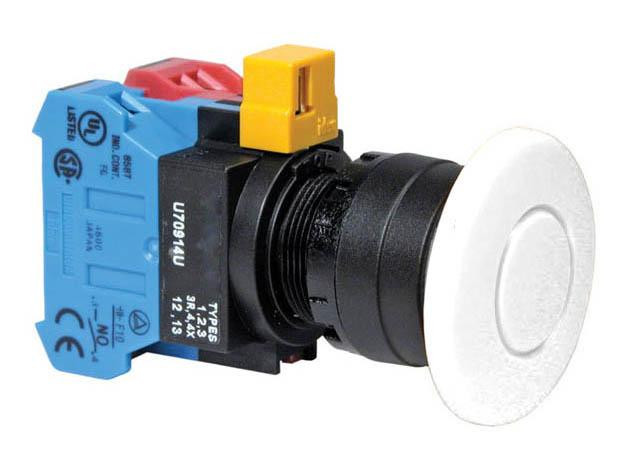

Pushbutton, Ø22mm, Plastic, Ø40mm Mushroom, Wht, Momentary, 1NO, Fingersafe, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$5.81
IDEC
HW-CB2C
Pushbutton Contact Block Mounting Adapter Use with 22mm HW Series- Non-Cancellable, No Returns
$1.09
IDEC
HW9Z-RL
Anti-Rotation Ring, Use with 22mm HW Series, Use with Notched Panel Cutout, Prevent Rotation
$0.54
$0.37
$0.29
Menics
A20B-M4E10W
Pushbutton, Ø22mm, Non-Illuminated, Momentary, Ø40mm Mushroom, 110V, 10A, 1NO, White
$8.39
