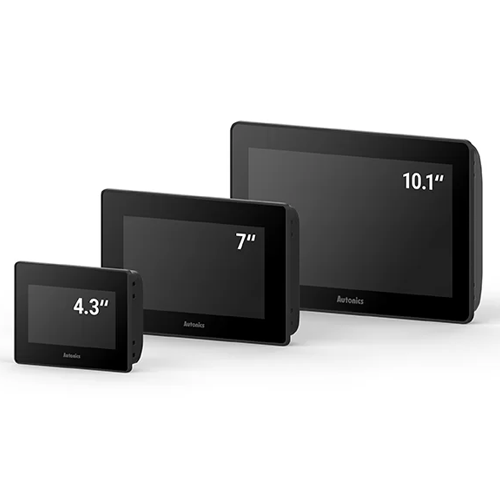

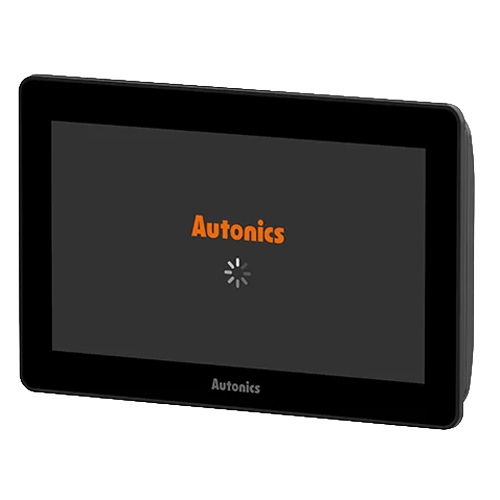

The Autonics TP Series standard graphic panels are touchscreen HMIs for operating and monitoring automated machines and equipment. Offered in 4.3", 7", and 10.1" sizes, the series pairs a quad-core CPU with 1GB of RAM and 8GB of storage for responsive screen performance, along with serial, Ethernet, and USB interfaces for flexible connection to PLCs and other industrial devices. Screens are designed with Autonics atDesigner-TP software, which is available at no additional cost, and an IP66-rated front panel supports installation in dusty or wet environments.
Key Features
4.3", 7", or 10.1" TFT color LCD with 16M colors, depending on model
480 x 272, 800 x 480, or 1024 x 600 resolution, depending on model
Analog resistive touchscreen
White LED backlight rated for 50,000 hours or more, with 10-level brightness adjustment
Quad-core CPU with 1GB DDR3 RAM, 8GB storage, and 128MB graphic drawing memory
RS-232C and RS-422/485 serial communication, with an additional RS-485 port on 7" and 10.1" models
One or two 10/100 Ethernet ports, depending on model
USB 2.0 Host (Type A) and USB 2.0 Device (Type C) ports
Supports OPC UA and the semiconductor industry protocols HSMS and SECS/GEM
Supports USB printers and RS-232C roll printers using EPSON protocol
Up to 65,535 user screens with Korean, English, Chinese, and Japanese language support
Built-in battery-backed clock and magnetic buzzer
24VDC Class 2 power with a 20-28VDC input range and 15W maximum power consumption
Operating temperature of -10 to 50°C and 0 to 90% RH humidity, non-condensing
IP66 front panel protection with plastic housing and natural air cooling
