Mersen
AJT60ID

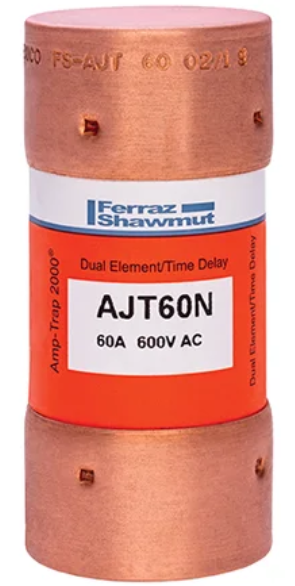

Fuse, Class J, Time Delay UL Power, 60A, Visual Open Indicator, Minimum Order of 10 (per Pack), Price per Piece
$62.84
Available Now!
Available Now!
(10 in stock)
AJT60
Alt: Latest Version of AJT60, Advertised Pricing Limited to MWA Stock! | Limited Stock Savings: 10 units available at this price
$45.11
Fuse, Class J, Time Delay UL Power, 60A, Non-Indicating, Minimum Order of 10 (per Pack), Price per Piece
- Weight:
- 0.20 LBS
- Minimum Purchase:
- 10 units
Description
The Mersen AJT Series Class J time-delay fuses are designed for motor, transformer, and general branch-circuit protection where compact size and high interrupting capacity are required. The series provides IEC Type 2 "No Damage" protection and current-limiting performance in about half the mounting space of 600V Class RK fuses, and covers ratings from 1A to 600A for a wide range of load types. Its time-delay design absorbs normal motor and transformer inrush current without nuisance opening.
Key Features
- Class J time-delay fuse rated 600V AC (up to 500V DC depending on amperage)
- Interrupting rating up to 200kA AC / 100kA DC
- Available in ratings from 1A to 600A
- SmartSpot visual open-fuse indicator available on select ratings
- Optional mechanical indicator/microswitch mount (EI) available on blade-type fuses, 70-600A, for remote indication

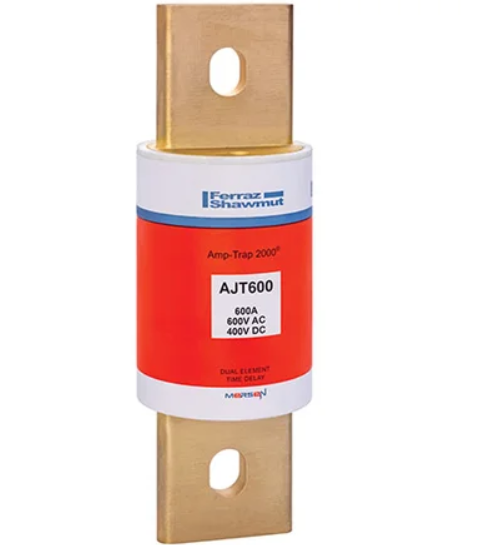

- Ferrule or blade terminal styles depending on amperage
- Approximately half the mounting space required by 600V Class RK fuses
Certifications
- UL Listed, Class J
- CSA Certified
