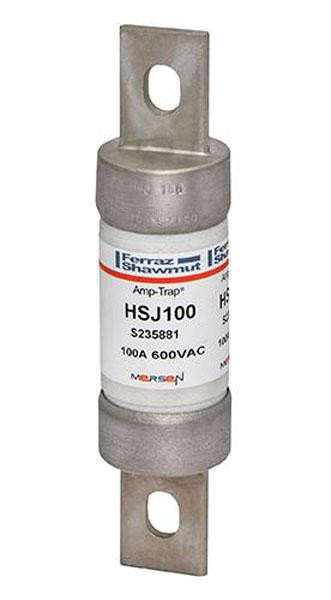

HSJ100

Features Include:

• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 500 V
• Amp Rating: 100 A
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Blade
• Body/Insulating Material: GMG
• Product Weight: 0.23 lb
• Product Diameter: 1.06 in
• Product Length: 4.63
• Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
• Low I2t (low thermal energy)
• Excellent cycling ability for frequent starts/stops without nuisance opening
