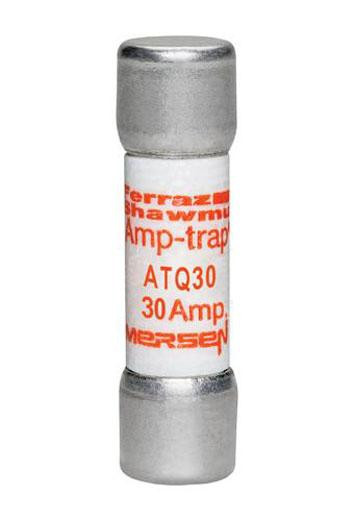

ATQ30
ATQ30
Mersen

ATQ30

Alt: Reference No. B211141

$42.17

Fuse, Amp-Trap, 500V, 30A, Time Delay Midget, Minimum Order of 10 (per Pack), Price per Piece

Minimum Purchase:
10 units
Adding to cart… The item has been added
ATQ midget time-delay fuses are rated 500VAC and great for supplemental circuit protection! Not designed for branch circuit protection.
ATQ30
ATQ30
Description

The ATQ series are midget time-delay relays that are rated 500VAC with amp ratings available from 1/10 to 30 amp.

The Amp-Trap ATQ series from Mersen is a great choice for supplemental circuit protection where available short circuit current does not exceed 10,000 amps. These are not designed for branch circuit protection.

Additoinal information:

  1. Numerous ratings for a wide variety of applications up to 500VAC
  2. Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
  3. Can be used with UltraSafe™ Fuse holders
  4. 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Features Include:

  • Rated Voltage AC UL: 500 V
  • Amp Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG
  • Diameter: 0.41 in
  • Length: 1.5 in
