F85RN

Fiber Optic Sensor, Dual Display, 12-24VDC, NPN/PNP Dual Output, Dark On/Light On, Four-Element (ALGainP) LED, M8 Connector, 0.065 - 4.000ms Response Time, IP40, Simple Teaching, Easy to Use, Replacement for F1, F10, F11, F5, F7, F80 Series

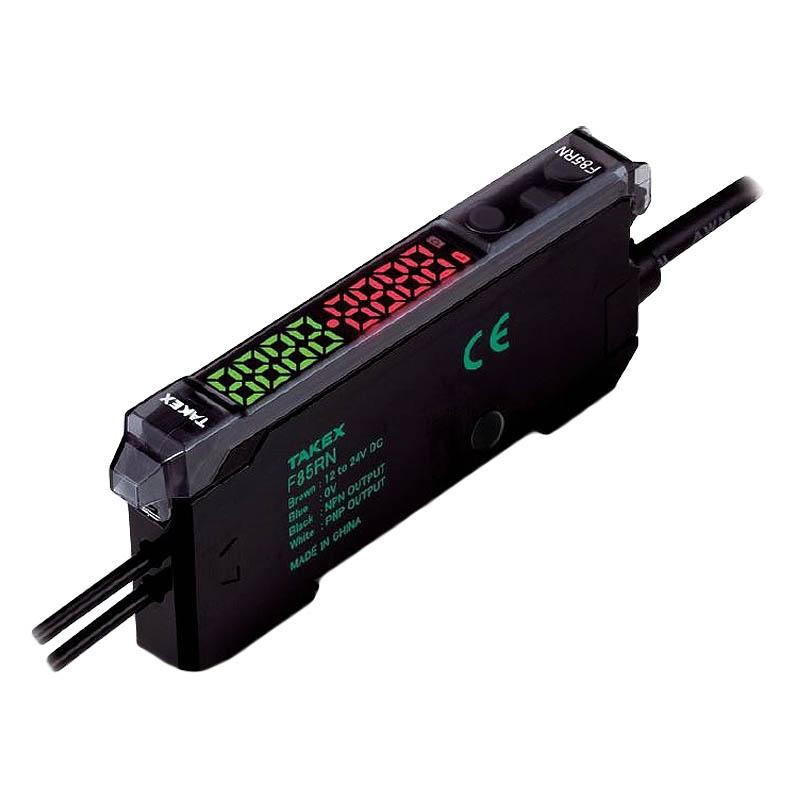

Our Takex F85RN is a dual display fiber optic sensor that gives you NPN/PNP dual output and simple teaching using a single button!

There is a large easy-to-read display, Light ON/Dark ON, red LED an attached cable.

Marshall Wolf Automation is your authorized TAKEX distributor!

Features Include:

• NPN / PNP dual output
• Simple teaching using a single button
• Large easy-to-read display
• Mutual interference prevention function
• Two types of display options available
• Power Supply:12 to 24 V DC ±10% / Ripple 10% or less
• Operation Mode: Light ON/Dark ON
• Response Time: High speed mode: 65 μs or less / Standard mode: 500 μs or less / Long mode: 4 ms or less
• Light Source (wavelength): Four-element (AlGaInp) red LED (660 nm)
• Indicator: Operation indicator, Setting indicator, Light ON / Dark ON indicator: orange LED
• Sensitivity Setting: 2-point teaching / Max. sensitivity teaching / Full auto teaching / Position teaching
• Mutual Interference Prevention: Up to 8 units (standard / long mode)
• Protection Circuit: Power supply reverse connection protection / Output short circuit protection
• Material: Polycarbonate
• Wiring: 2 m attached cable (Outer dimension: dia. 4.2 mm) 0.2 mm², 4 cores
