1 available from manufacturer (as of 10/12/2026)
072000
Alt: 72000, CES-A-AEA-04B
$1,045.06
Evaluation Unit, for 4 Read Heads Can be Connected, 2 Safety contacts 13/14, 23/24, 1NO Contact per Safety Contact, Start Button and Feedback Loop can be Connected, Category 4/PL e according to EN ISO 13849-1
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

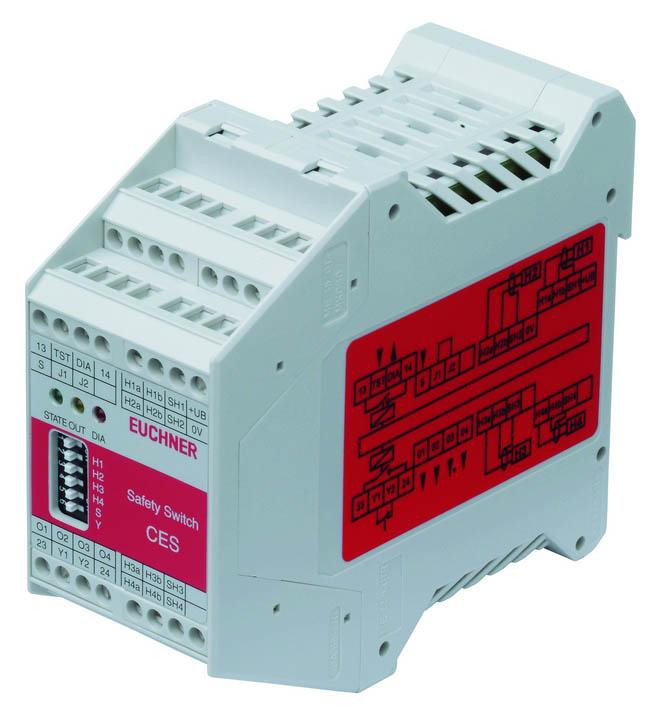

The Euchner CES evaluation unit evaluates the safety-related signals from up to four Euchner CES read heads. Together with the read head and actuator it forms a non-contact interlocking device for monitoring movable guards. With CES-AZ evaluation units, the system can form an interlocking device with or without guard locking, depending on the read heads used.
Key Features
- Evaluation unit for up to 4 Euchner CES read heads
- CES-A version (072000): 2 safety contacts (relay contacts) with 1 internal NO contact each, start button and feedback loop can be connected
- CES-AZ version (104780) supports read heads with or without guard locking, depending on the read heads used
