13 available from manufacturer (as of 10/19/2026)
104780
Alt: CES-AZ-AES-04B
$1,047.51
Evaluation Unit, (For 4 Read Heads)
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

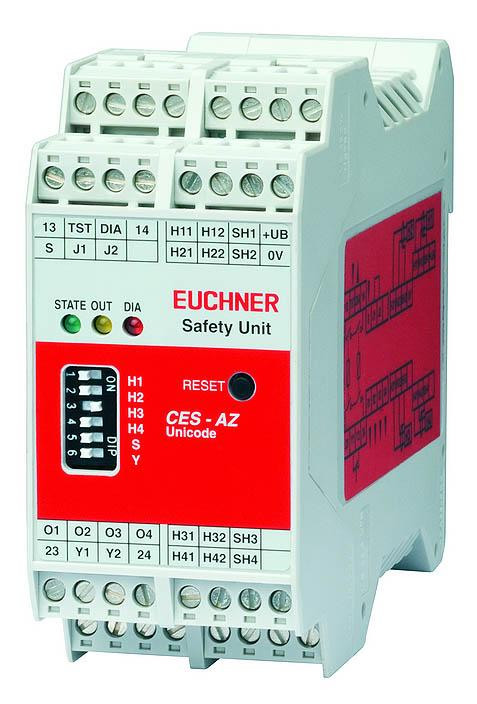

The Euchner CES evaluation unit evaluates the safety-related signals from up to four Euchner CES read heads. Together with the read head and actuator it forms a non-contact interlocking device for monitoring movable guards. With CES-AZ evaluation units, the system can form an interlocking device with or without guard locking, depending on the read heads used.
Key Features
- Evaluation unit for up to 4 Euchner CES read heads
- CES-A version (072000): 2 safety contacts (relay contacts) with 1 internal NO contact each, start button and feedback loop can be connected
- CES-AZ version (104780) supports read heads with or without guard locking, depending on the read heads used
