SCE-N86L7818
Saginaw

SCE-N86L7818

Alt: Cost-Effective Alternative to SCE-90XML2D18, SCE-90XML2D18G or SCE-90XM5EW18

$4,100.00

Enclosure, 2-Door Left Bay, Right Side Open, 86 x 77.75 x 18" HWD, .104" Carbon Steel, ANSI-61 Gray, For Multi-Bay Freestanding Assembly, Subpanel Sold Separately, NEMA/UL 3R, 4, 12, NEMA 13, IP66

Weight:
790.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

The Saginaw NextGen Series free-standing enclosure system is designed for housing electrical controls, disconnects, and subpanel-mounted components in industrial applications that call for a modular, expandable enclosure footprint. The series is available in carbon steel or stainless steel construction with NEMA and UL Type ratings for indoor and outdoor use, and its modular bay design allows left, right, and center sections to bolt together into a single multi-door, multi-bay enclosure. Continuously welded seams, concealed hinges, and a pour-in-place gasket help the enclosure hold up in industrial environments.

Key Features

  • Available in 0.075-0.104 inch carbon steel (ANSI-61 gray) or 304/316 stainless steel (number 4 brushed finish)
  • NEMA/UL Type 3R, 4, 12, 13 rated in carbon steel; NEMA/UL Type 3R, 4, 4X, 12, 13 rated in stainless steel; IP66
  • Modular bay system: left bay, right bay, and center bay sections bolt together for multi-door, multi-bay assemblies
  • Continuously welded and ground-smooth seams with concealed hinges
  • Cable-operated mechanical interlock for quick installation
  • Provisions for external disconnect mounting, with matching external disconnect enclosures available
  • Compatible with subpanels, barrier plates, DIN rail, and gaskets, sold separately

Certifications

  • UL Listed (UL 508A)
  • Meets NFPA 79

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Saginaw

SCE-N86L7818SS

Enclosure, 2-Door Left Bay, Right Side Open, 86 x 77.75 x 18" HWD, .104" 304 Stainless Steel, #4 Brushed Finish, For Multi-Bay Freestanding Assembly, Subpanel Sold Separately, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66

$12,642.59

Saginaw

SCE-30H2414QFGLP

Fiberglass Enclosure (QFGLP), 33.41 x 26.28 x 13.79" HWD, Wall Mount, Quick Release, Light Gray, NEMA/UL 4, 4X, 12, NEMA 13, IP66

$1,454.50

Saginaw

SCE-1816PC

Polycarbonate Enclosure (PC), 19.41 x 18.68 x 11.9" HWD, Opaque Cover, RAL 7035 Light Gray, NEMA/UL 3R, 4, 4X, 12 and NEMA 13, IP66, Non-Metallic Polycarbonate Enclosure

$274.49

Saginaw

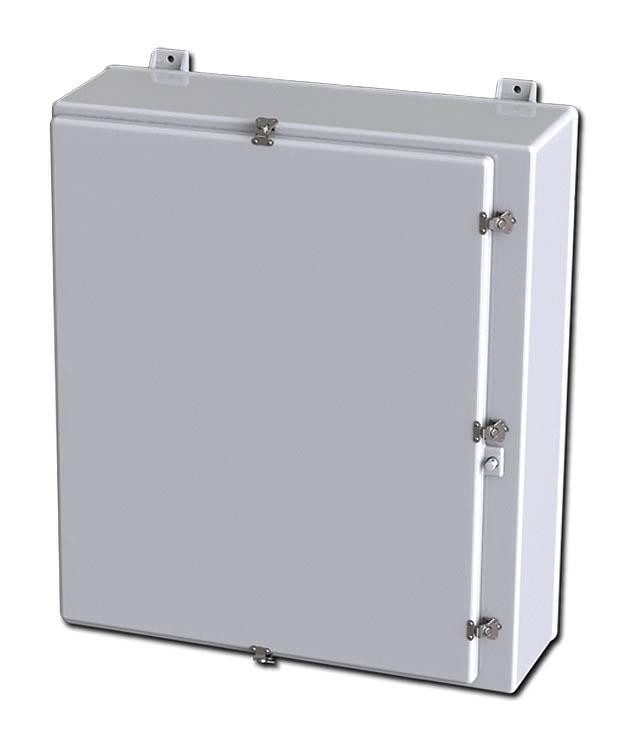

SCE-36H3014QFGLP
