Saginaw
SCE-30H2414QFGLP
Fiberglass Enclosure (QFGLP), 33.41 x 26.28 x 13.79" HWD, Wall Mount, Quick Release, Light Gray, NEMA/UL 4, 4X, 12, NEMA 13, IP66
$1,454.50

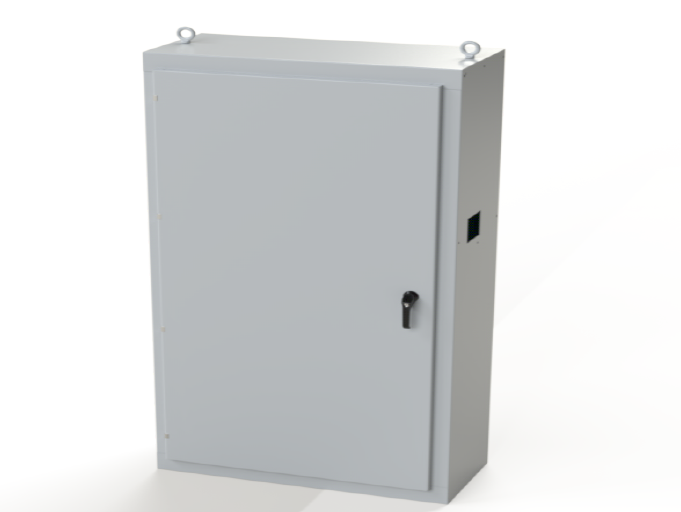

SCE-N86EXD4018
Alt: Cost-Effective Alternative to SCE-90XD4018 or SCE-90XD4018G
$2,993.16
Enclosure, 1-Door, Both Sides Solid, 86 x 40.25 x 18" HWD, .104" Carbon Steel, ANSI-61 Gray, Provisions for External Disconnect Accessory, Subpanel Sold Separately, NEMA/UL 3R, 4, 12, NEMA 13, IP66
- Weight:
- 330.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Saginaw NextGen Series free-standing enclosure system is designed for housing electrical controls, disconnects, and subpanel-mounted components in industrial applications that call for a modular, expandable enclosure footprint. The series is available in carbon steel or stainless steel construction with NEMA and UL Type ratings for indoor and outdoor use, and its modular bay design allows left, right, and center sections to bolt together into a single multi-door, multi-bay enclosure. Continuously welded seams, concealed hinges, and a pour-in-place gasket help the enclosure hold up in industrial environments.
Key Features
- Available in 0.075-0.104 inch carbon steel (ANSI-61 gray) or 304/316 stainless steel (number 4 brushed finish)
- NEMA/UL Type 3R, 4, 12, 13 rated in carbon steel; NEMA/UL Type 3R, 4, 4X, 12, 13 rated in stainless steel; IP66
- Modular bay system: left bay, right bay, and center bay sections bolt together for multi-door, multi-bay assemblies
- Continuously welded and ground-smooth seams with concealed hinges
- Cable-operated mechanical interlock for quick installation
- Provisions for external disconnect mounting, with matching external disconnect enclosures available
- Compatible with subpanels, barrier plates, DIN rail, and gaskets, sold separately
Certifications
- UL Listed (UL 508A)
- Meets NFPA 79
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Saginaw
SCE-1816PC
Polycarbonate Enclosure (PC), 19.41 x 18.68 x 11.9" HWD, Opaque Cover, RAL 7035 Light Gray, NEMA/UL 3R, 4, 4X, 12 and NEMA 13, IP66, Non-Metallic Polycarbonate Enclosure
$274.49
Saginaw
SCE-36H3014QFGLP
Fiberglass Enclosure (QFGLP), 39.31 x 32.5 x 14.06" HWD, Wall Mount, Quick Release, Light Gray, NEMA/UL 4, 4X, 12, NEMA 13, IP66
$1,919.60
$66.75
$22.62
