SCE-36XEL2510LPLG

SCE-36XEL2510LPLG

Alt: SCE Series

$616.00

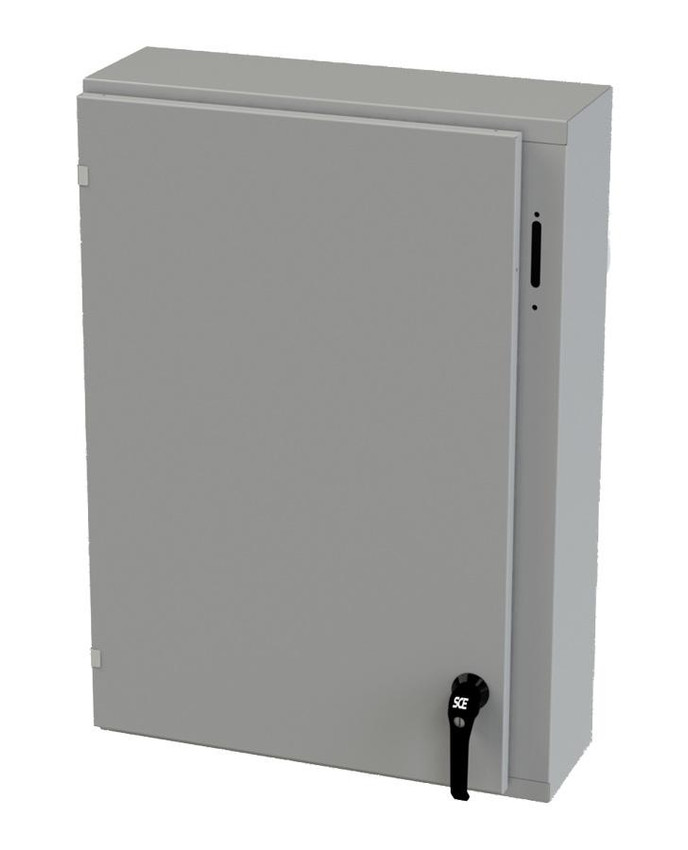

Enclosure XEL LP, 36x25.375x10", NEMA/UL 3R, 4, 12, NEMA 13, IP66

Weight:
90.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note: if this item is unable to ship UPS Ground it will not qualify for free shipping. You will be advised before your order is processed if it needs to ship freight. Thank you!
Description

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

  • Modular enclosures
    • Endless combinations, multiple door arrangements, up to ten
    • Modular units work around each other for users to interact with them and equipment they hold
  • Wall mount enclosures
    • Generally the most expensive group
    • Indoor or outdoor options
    • Available as pushbutton enclosures up to large electrical requirements
  • Free-standing and floor-mounted enclosures
    • Mostly used outdoors and needing multi-door
    • Generally used for a large amount of electical components, single or multiple door
  • Non-Metallic enclosures
    • Includes fiberglass, polycarbonate
    • Used to protect from corrosion, UV rays or very damp conditions
    • Allows windowed or windowless
    • Includes pushbutton, junction, wall-mount and many other options
  • Operator system enclosures
    • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil & water resistant gasket
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Disconnect cutout provided on flange.
  • Concealed hinges.
  • Doors are interchangeable and easily removed by pulling hinge pins.
  • 3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
  • Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available).
  • Mounting holes on back of enclosure.
  • Mounting hardware, sealing washer and hole plug included.
  • Ground studs on door and body.
  • Black zinc die cast coinproof/padlocking handle.
  • Removable print pocket.
