SCE-48EL3616SSLP

Product image is representative only, please verify specifications.

Saginaw

SCE-48EL3616SSLP

$2,596.83

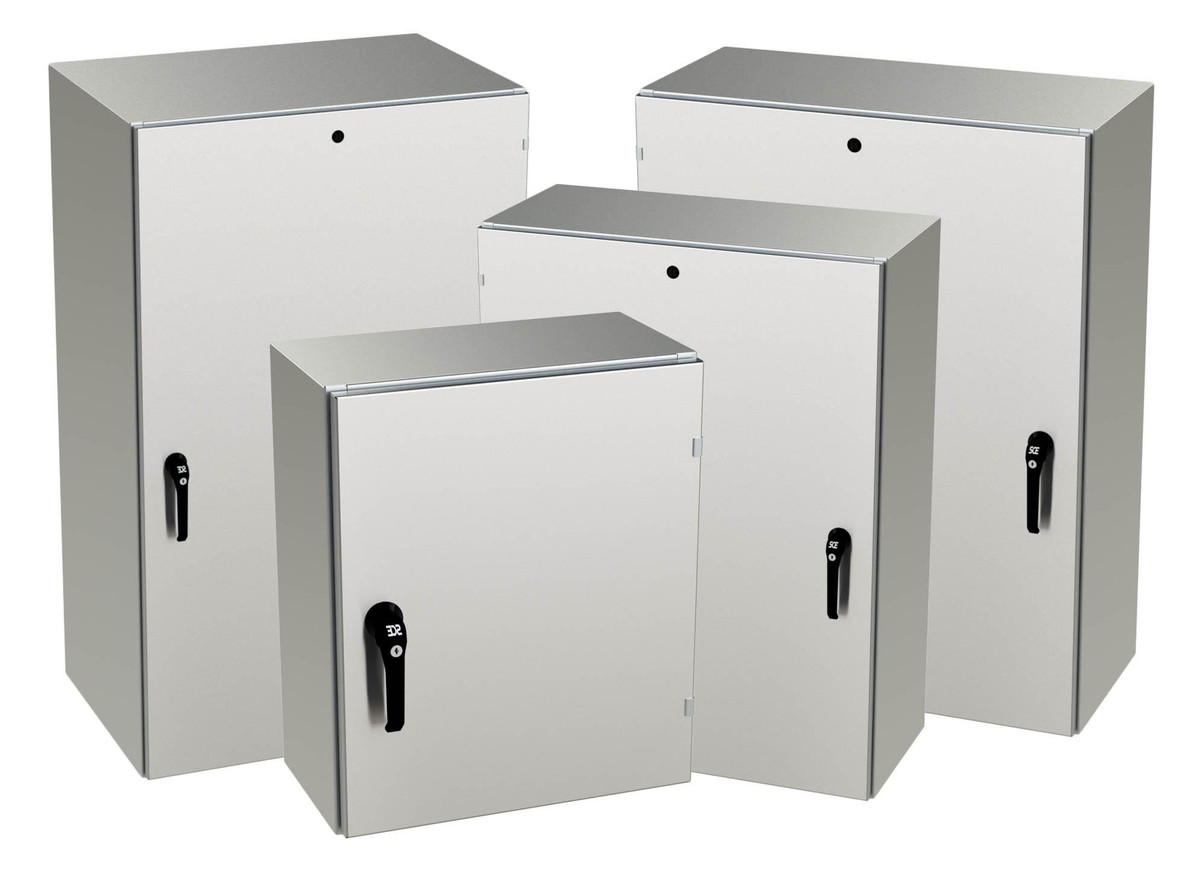

Enclosure (EL SS LP), Single Door, 48 x 36 x 16" HWD, 0.075 Stainless Steel 304, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Single Door Enclosure (304 Stainless Steel)

Weight:
183.60 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note: if this item is unable to ship UPS Ground it will not qualify for free shipping. You will be advised before your order is processed if it needs to ship freight. Thank you!
Description

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

  • Modular enclosures
    • Endless combinations, multiple door arrangements, up to ten
    • Modular units work around each other for users to interact with them and equipment they hold
  • Wall mount enclosures
    • Generally the most expensive group
    • Indoor or outdoor options
    • Available as pushbutton enclosures up to large electrical requirements
  • Free-standing and floor-mounted enclosures
    • Mostly used outdoors and needing multi-door
    • Generally used for a large amount of electical components, single or multiple door
  • Non-Metallic enclosures
    • Includes fiberglass, polycarbonate
    • Used to protect from corrosion, UV rays or very damp conditions
    • Allows windowed or windowless
    • Includes pushbutton, junction, wall-mount and many other options
  • Operator system enclosures
    • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

  • 0.075 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil & water resistant gasket
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Stainless steel concealed hinges.
  • Removable and interchangeable doors.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available).
  • Mounting holes in back of enclosure.
  • Mounting hardware, sealing washer and hole plug included.
  • Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
  • Ground studs on door and body.
