Saginaw
SCE-84XMC2D24G
Enclosure, 2 Door Center XM, 84x77.50x24" with Subpanel SCE-76P76GALV, NEMA/UL 3R, 12, NEMA 13, IP55
$5,397.56
Product image is representative only, please verify specifications.

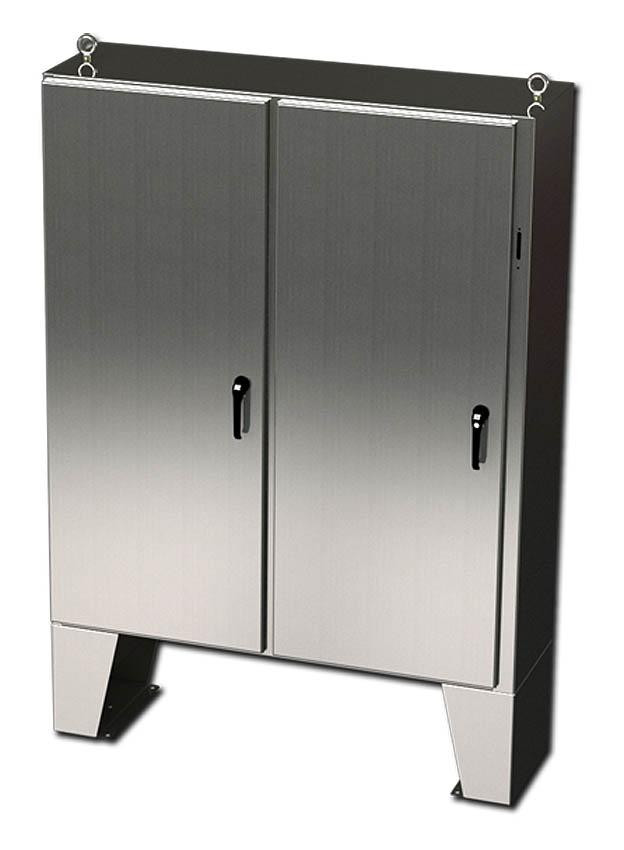

SCE-60XEL6112SSLP
Alt: SCE Series
$9,404.06
Enclosure SS 2 Door XEL, 60x61x12", NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.104 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Pour in place oil & water resistant gasket
- Flange trough collar around all sides of door opening.
- Stainless steel concealed hinges.
- Removable and interchangeable doors.
- 3-point latching mechanism.
- Removable print pocket.
- Lifting eyes for easy handling.
- Ground studs on door and body.
- Collar studs 3/8-16 provided for mounting optional panels.
- 15 In. removable floor stands.
- Removable center post.
- Mechanical interlock.
- No door stiffeners required.
- Black zinc die cast coinproof/padlocking handle on main door of disconnect enclosures. Black zinc die cast padlocking handle on all other doors.
- Provisions for light kit.
Need More Information?
Read more about Enclosures here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Saginaw
SCE-84XMR3D24SS
Enclosure, 3 Door Right XM, 84x118x24" with 2 Subpanels: SCE-76P37+SCE-76P76, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66
$21,066.68
Saginaw
SCE-84XMR2D24SS
Enclosure, SS 2 Door Right XM, 84x78.75x24" with Subpanel: SCE-76P76, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66
$14,182.09
Saginaw
SCE-84XMR3D18SS
Enclosure, SS 3 Door Right XM, 84x118x18" with 2 Subpanels: SCE-76P37+SCE-76P76, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66
$20,265.16
