Saginaw
SCE-30H2414QFGLP
Fiberglass Enclosure (QFGLP), 33.41 x 26.28 x 13.79" HWD, Wall Mount, Quick Release, Light Gray, NEMA/UL 4, 4X, 12, NEMA 13, IP66
$1,454.50
Product image is representative only, please verify specifications.
SCE-24H2010LP
Alt: Cost Effective Alternative : SCE-24EL2010LP
$386.45

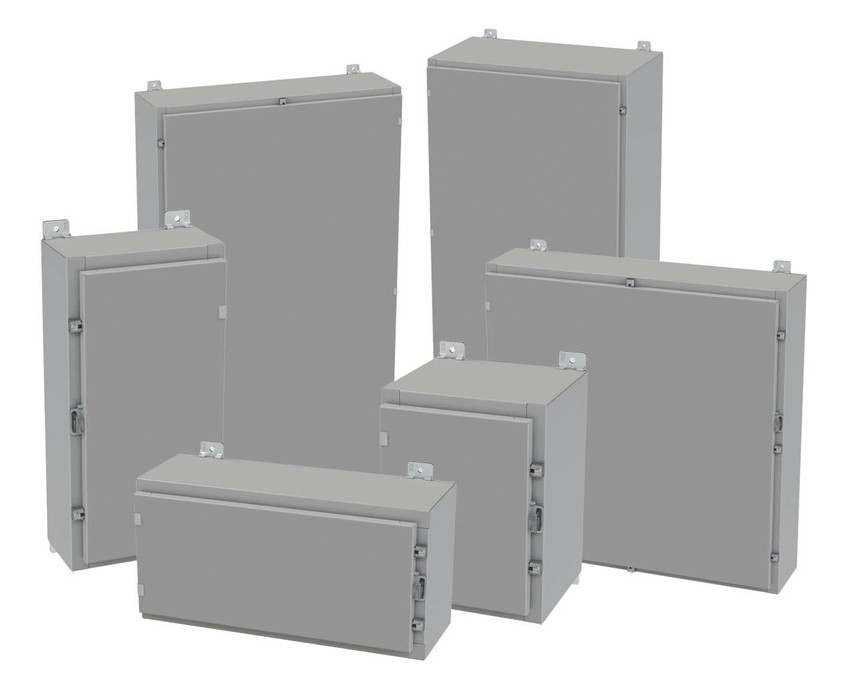

Enclosure (H LP), Single Door, 24 x 20 x 10" HWD, Wall Mount, 0.075" Carbon Steel, ANSI-61 Gray with SCE-HLPMFK Mounting Foot Kit, NEMA/UL 3R, 4, 12, NEMA 13, IP66, NEMA 4 Clamp Fastened Single Door Enclosure
- Weight:
- 55.20 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Door clamps are quick and easy to operate.
- Concealed hinge.
- Hasp and staple for padlocking.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Ground stud on door.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- External mounting provision top and bottom of back.
