Saginaw
SCE-1PBX
Pushbutton Enclosure (PBX), 1 Hole, 4.00 x 4.00 x 4.75" HWD, NEMA/UL 4, 12, NEMA 13, IP66, ANSI-61 Gray, 30.5mm (0.063" Carbon Steel)
$68.42
Product image is representative only, please verify specifications.
32 available from manufacturer (as of 10/26/2026)
SCE-24H1608LP
Alt: Cost Effective Alternative : SCE-24EL1608LP
$344.02

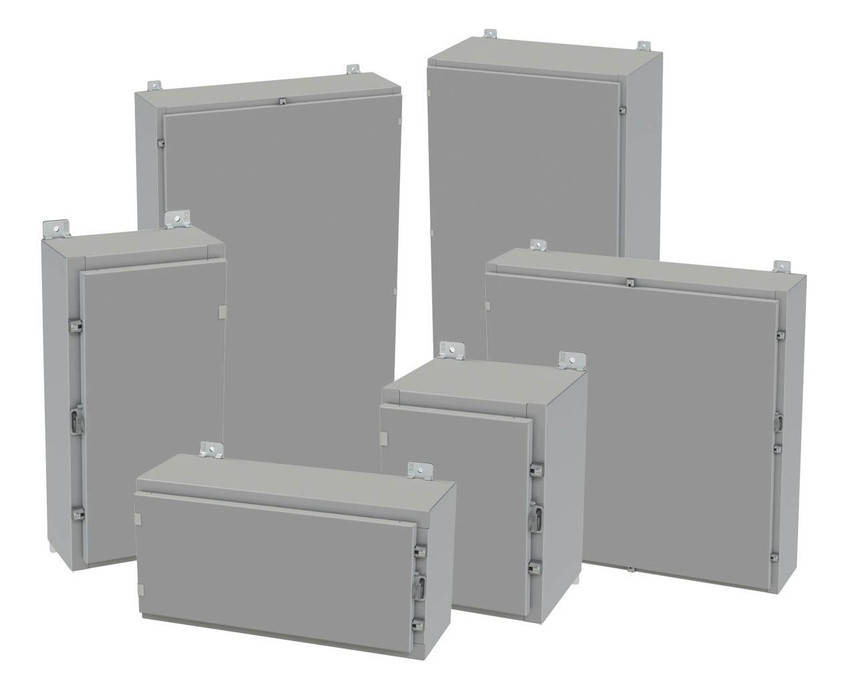

Enclosure (H LP), Single Door, 24 x 16 x 8" HWD, Wall Mount, 0.075" Carbon Steel, ANSI-61 Gray with SCE-HLPMFK Mounting Foot Kit, NEMA/UL 3R, 4, 12, NEMA 13, IP66, NEMA 4 Clamp Fastened Single Door Enclosure
- Weight:
- 43.20 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Door clamps are quick and easy to operate.
- Concealed hinge.
- Hasp and staple for padlocking.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Ground stud on door.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- External mounting provision top and bottom of back.
Need More Information?
Read more about Enclosures here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Saginaw
SCE-16EL1408LPLG
Enclosure (EL), Single Door, 16 x14 x 8" HWD, Wall Mount, 0.075" Carbon Steel, RAL 7035 Gray, NEMA/UL 3R, 4, 12, NEMA 13, IP66, Enviroline Single Door Enclosure (RAL 7035 Gray)
$266.26
Saginaw
SCE-16EL2008SSLP
Enclosure (EL SS LP), Single Door, 16 x 20 x 8" HWD, 0.075 Stainless Steel 304, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Single Door Enclosure (304 Stainless Steel)
$818.14
Saginaw
SCE-20EL1608SSST
Enclosure (EL SS ST) with Sloping Top, 20 x 16 x 8" HWD, 0.075" Stainless Steel 304, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Sloping Top Single Door Enclosure (Stainless Steel 304)
$1,072.81
Saginaw
SCE-20208ELJ
Enclosure (ELJ), Single Door, 20 x 20 x 8" HWD, Wall Mount, 0.063 Carbon Steel, ANSI-61 Gray, with Mounting Foot Kit SCE-ELJMFK, NEMA/UL 3R, 4, 12, NEMA 13, IP66, Enviroline Junction Enclosure
$194.51
