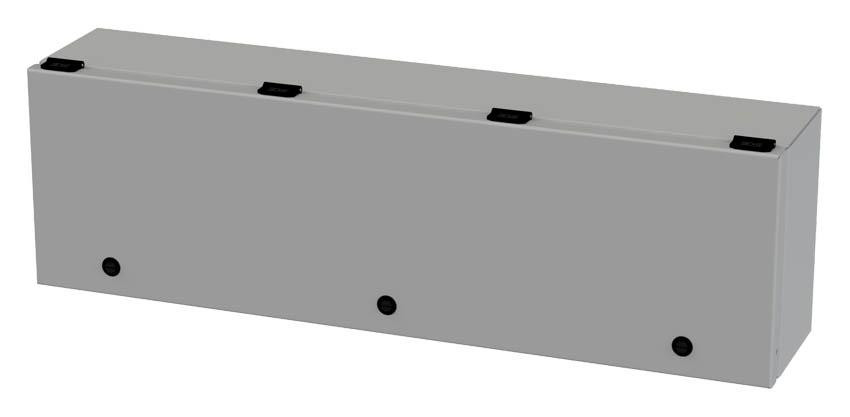

SCE-L9306ELJ

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements
• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Features Include:

• 0.063 In. carbon steel
• Height: 9.00"
• Width: 30.00"
• Depth: 6.00"
• Seams continuously welded and ground smooth
• Flange trough collar around all sides of door opening
• Pour in place oil & water resistant gasket
• 10-32 Standoffs provided for mounting optional panels
• Removable hinges
• Doors open 180 degrees
• Black mini quarter turn latches
• Latches are opened or closed with a screwdriver
• Sealing washers and hole plugs included
• Ground stud on door & body
• Mounting holes in back of enclosure
• Mounting feet included
• Padlocking or keylocking latches, and tamper-resistant hardware is available
