Alt: Cost Effective Alternative : SCE-N86EXD4018 & SCE-NEXD18
$4,568.60
(You save)

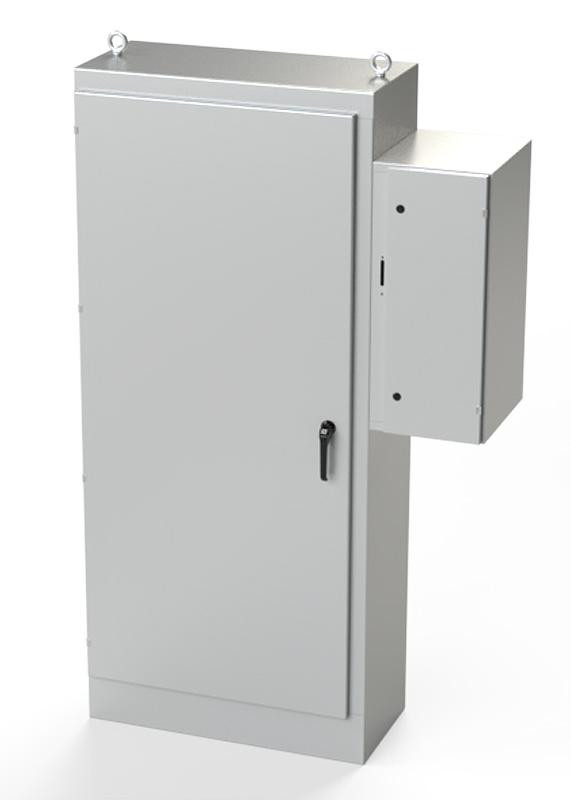

Enclosure (XD G), SIngle Door, 90 x 39.5 x18" HWD, 0.125" Carbon Steel, ANSI-61 Gray with SCE-82P37GALV Subpanel, NEMA/UL 3R, 4, 12, NEMA 13, IP66, Heavy Duty Free-Standing Enclosure with External Disconnect Enclosure Installed
SKU:
SCE-90XD4018G
Weight:
804.00 LBS
Minimum Purchase:
1 unit
Please note: if this item is unable to ship UPS Ground it will not qualify for free shipping. You will be advised before your order is processed if it needs to ship freight. Thank you!
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
Modular enclosures
Endless combinations, multiple door arrangements, up to ten
Modular units work around each other for users to interact with them and equipment they hold
Wall mount enclosures
Generally the most expensive group
Indoor or outdoor options
Available as pushbutton enclosures up to large electrical requirements
Free-standing and floor-mounted enclosures
Mostly used outdoors and needing multi-door
Generally used for a large amount of electical components, single or multiple door
Non-Metallic enclosures
Includes fiberglass, polycarbonate
Used to protect from corrosion, UV rays or very damp conditions
Allows windowed or windowless
Includes pushbutton, junction, wall-mount and many other options
Operator system enclosures
Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
0.125 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
Black zinc die cast padlocking handles.
3-point latching mechanism.
Large removable print pockets.
Pour in place oil & water resistant gasket.
Removable panels are mounted on collar studs.
Defeater on master door requires a screwdriver to open.
Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
Ground stud on door & body.
Provisions for light kit.
Hole plugs provided to seal holes in bottom of enclosure.
