091098
Alt: 91098, ZSE2-4C1801
$418.53
Enabling Pushbutton, ZSE2-4C1801
- Minimum Purchase:
- 1 unit
Description
Features Include:
- 3-stage Function

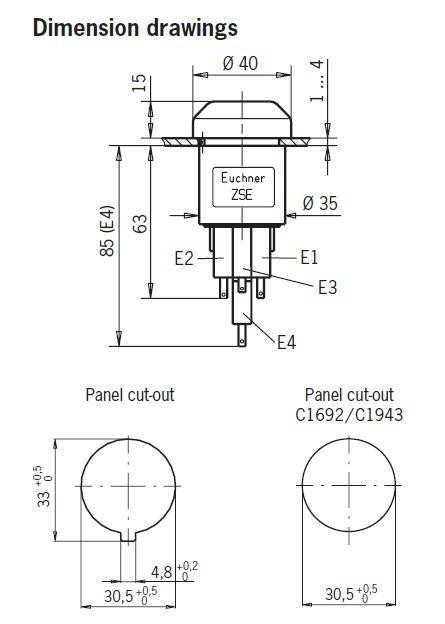

- 30.5 mm Installation Dimension
- With spacer for installation in enabling switch housing G2 or G3
- Rated Conditional Short-Circuit Current 100 A
- Rated Impulse Withstand Voltage Uimp 2.5 kV
- Rated Insulation Voltage Ui 250 V
- Short Circuit Protection According to IEC 60269-1: 4A gG
- Switching Current at 24V: min. 1 mA
- Switching Voltage at 10mA: min. 12 V
- Utilization category: AC-15 4A 230V, DC-13 3A 24V
- Mechanical values and environment: Ambient temperature -5 - +60 °C
- Connection: Tab connector 2.8 x 0.8 IEC 760 + soldered connection
- Degree of Protection: IP00, IP65
- Material: Housing Plastic, color black, Cap Elastomer, low PAH, black
