Autonics
S2TR-P3WABL
Double Pushbutton, Ø22mm, Spring Return, LED, White, NO/NC, 110VAC/10A, 220VAC/5A, 100-220VAC
$21.00
Available Now!
Available Now!
(1 in stock)

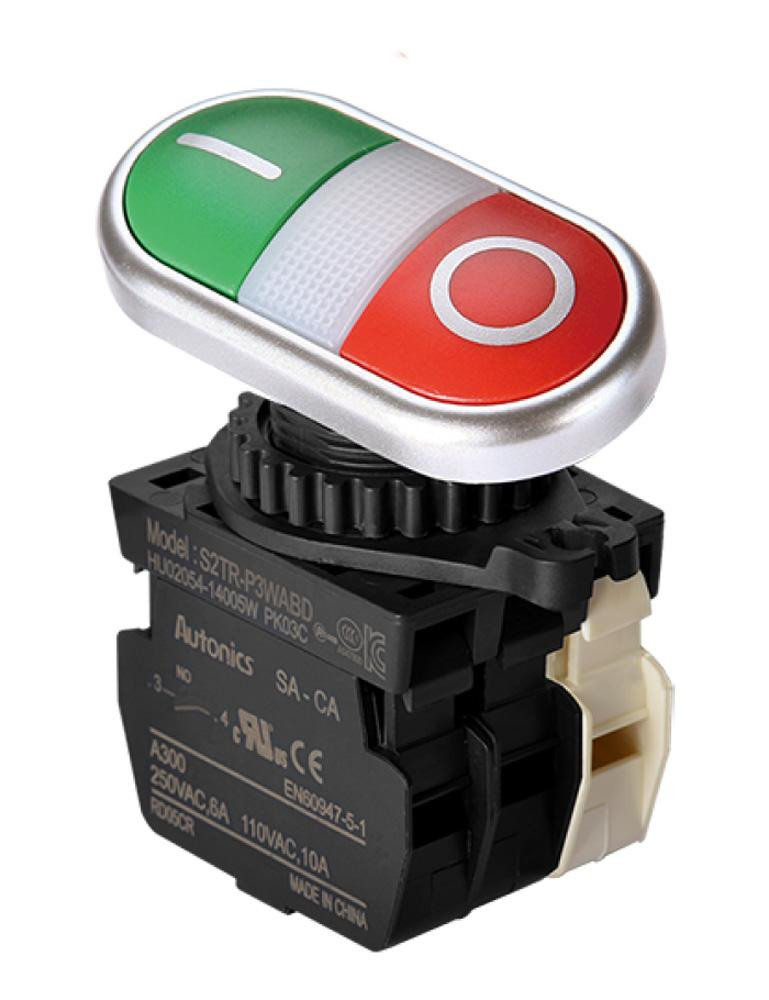

S2TR-P3WABD
Alt: *This Item is Shipped in Components
$17.00
Double Pushbutton, Ø22/25, White, 1NO, 1NC, Illum, Auto Spring Ret, LED 12-30VAC/DC, *Shipped in Components: 1 Each of S2TR-P3W, SA-CA, SA-CB & SA-LD
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Please note the manufacturer ships this item in components, you will receive 4 components that can be snapped together.
- Components: S2TR-P3W, SA-CA, SA-CB, SA-LD
- Contact Block Electrical Specification Power voltage/current: 110VAC~/10A, 250VAC~/6A
- LED Block Power supply: 12-24VAC~ 50/60Hz, 12-24VDC @(=)
- Protection structure: IP50
- Approval @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications)
- Weight Mounting Hole: Ø22/25 Approx. 14.5g
- Weight Housing: Approx. 7g
- Weight Contact Block Singular Type A/B contact: Approx. 11g
- Illuminated: [Illuminated] Extended
- Letter marking: Marking(Push)
- Contact block: A contact: 1, B contact: 1
- Contact Block Type: Singular type
- Environment Ambient Temperature: -15 to 55℃, storage: -25 to 65℃
- Environment Ambient Humidity: 35 to 85% RH, storage: 35 to 85% RH
