Product image is representative only, please verify specifications.
731BDC

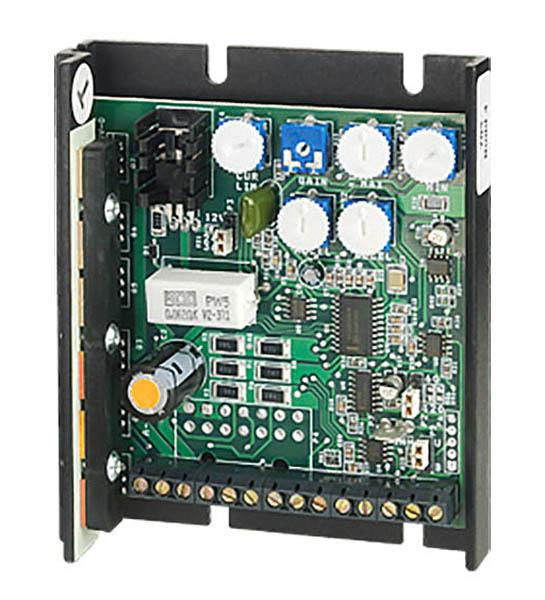

Alt: Brushless DC Motor Control, Chassis
Brushless DC Motor Control, Chassis, Closed Loop, 12-48VDC Supply and Motor Voltage, 7.5ADC,
- Minimum Purchase:
- 1 unit
Dart’s 700 Series (700BDC, 730BDC, 731BDC, 733BDC) are DC brushless motor controls that provide variable speed operation for most brushless DC motors.
Low cost, compact and energy efficient, this series is a great, new alternative in motor control!
These drives are ideal where high speed or quiet operation is needed, combined with a BLDC motor completely eliminating brush wear. The 700 Series may be provided with a pluggable connector and fixed speed settings for OEM applications.
The 700BDC / 730BDC / 731BDC models are ideal for fan, pump and other basic applications. The 733BDC is suited for those applications where more sophisticated motor speed profile control is needed (ACCEL/DECEL). Model 733BDC has a unique Current Limit Latch feature that allows many options for addressing equipment and personnel safety in overload conditions. The 730BDC is a basic drive for fan and pump applications with larger motors.
Marshall Wolf Automation is your authorized Dart Controls distributor!
- Adjustable MIN and MAX speed; CURRENT LIMIT
- Adjustable ACCEL/DECEL (703B/ 733B only)
- 150% overload for 30 seconds
- Field selectable motor hall spacing
- 50:1 speed range
- FWD/ REV feature
- BRAKE feature (730B Series only)
- Current Limit Latch feature (733BDC only)
