Carlo Gavazzi

DBA52CM24

Alt: Manufacturer Minimum Order 5 Pieces

$88.80

Timer, Delay on, 0.1s-100h, 24VDC/24-240VAC, SPDT, DIN Rail Mount, Manufacturer Minimum Order 5 Pieces, Price per Piece

Minimum Purchase:
5 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DBA52CM24
DBA52CM24
DBA52CM24
DBA52CM24
Description
Timer, Delay on, 0.1s-100h, 24VDC/24-240VAC, SPDT, DIN-Rail Mount

Features Include:

  • Time range 0.1 s to 100 h
  • Knob selection of time range
  • Knob-adjustable time setting
  • Repeatability: ≤ 0.2%
  • Output: 5 A SPDT relay
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 17.5 mm DIN-rail housing
  • LED indication for relay status and power supply ON
  • Voltage Interruption: ≤ 10 ms
  • Rated insulation voltage: 250 VAC (rms)
  • Operating Frequency: < 7200 operations/h

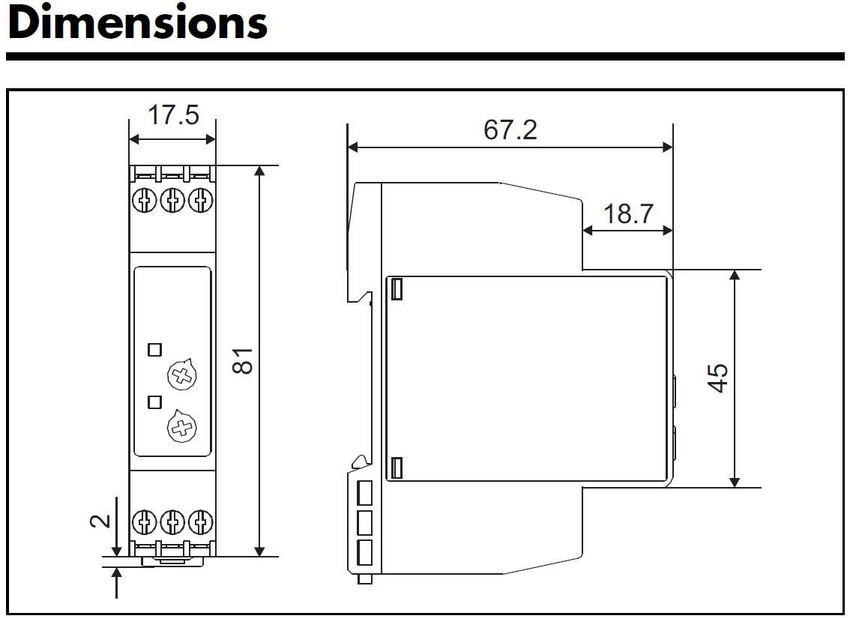

  • Dimensions: 17.5 x 81 x 67.2 mm

Rated Operational Power:

  • AC Supply: 4VA
  • DC Supply: 1.5 W

Rated Operational Voltage through Terminals: A1 and A2:

  • 24 VDC ±15% and 24 to 240 VAC +10%/-15%, 45 to 65 Hz

Time Variation:

  • Within rated power supply: ≤ 0.05%
  • Within ambient temperature: ≤ 0.2%

Start to delta delay:

  • Neutral Centre Position: 50 to 130 ms between star and delta position
