DAC01CM24
DAC01CM24
DAC01CM24

Product image is representative only, please verify specifications.

Carlo Gavazzi

DAC01CM24

Alt: Manufacturer Minimum Order 5 Pieces

$97.60

Timer, Star-Delta, 0.1-600s & 50-130ms, 24-240VAC/DC, DIN Rail Mount, Manufacturer Minimum Order 5 Pieces, Price per Piece

Minimum Purchase:
5 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DAC01CM24
DAC01CM24
DAC01CM24
DAC01CM24
Description

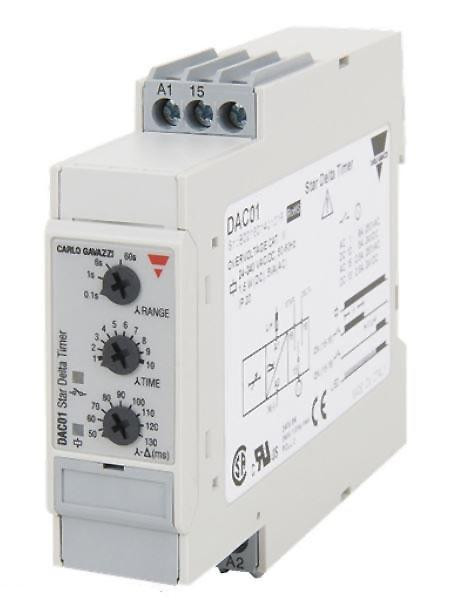

Timer, Star-Delta, 0.1-600s & 50-130ms, 24-240VAC/DC, DIN-Rail Mount

Features Include:

  • Time range (Star): 0.1 to 600 s
  • Time range (Star to Delta): 50 to 130 ms
  • Knob selection of star time range
  • Knob adjustable time setting
  • Automatic start
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 22.5 mm Euronorm housing or 36 mm Plug-in module housing
  • LED indication for relay status and power supply ON
  • Setting Accuracy: ≤5%
  • Repeatability: ≤0.2%
  • Output: SPDT relay with neutral centre position
  • Output Rated Insulation Voltage:250 VAC (RMS)
  • Operating Frequency: < 7200 operations/h
  • Voltage Interruption: ≤ 10 ms
  • Dimensions: 22.5 x 80 x 99.5 mm

Rated Operational Voltage through Terminals: A1 and A2 (DAC01)

  • 24 to 240 VAC/DC +10% -15%, 45 to 65 Hz

Time Variation:

  • Within rated power supply: ≤ 0.05%
  • Within ambient temperature: ≤ 0.2%

Start to delta delay:

  • Neutral Centre Position: 50 to 130 ms between star and delta position
