CWC012-00-40V18

Name: CWC012-00-40V18
Brand: Weg
SKU: CWC012-00-40V18
Price: 22.46 USD
Availability: InStock

Alt: 13492514

$22.46

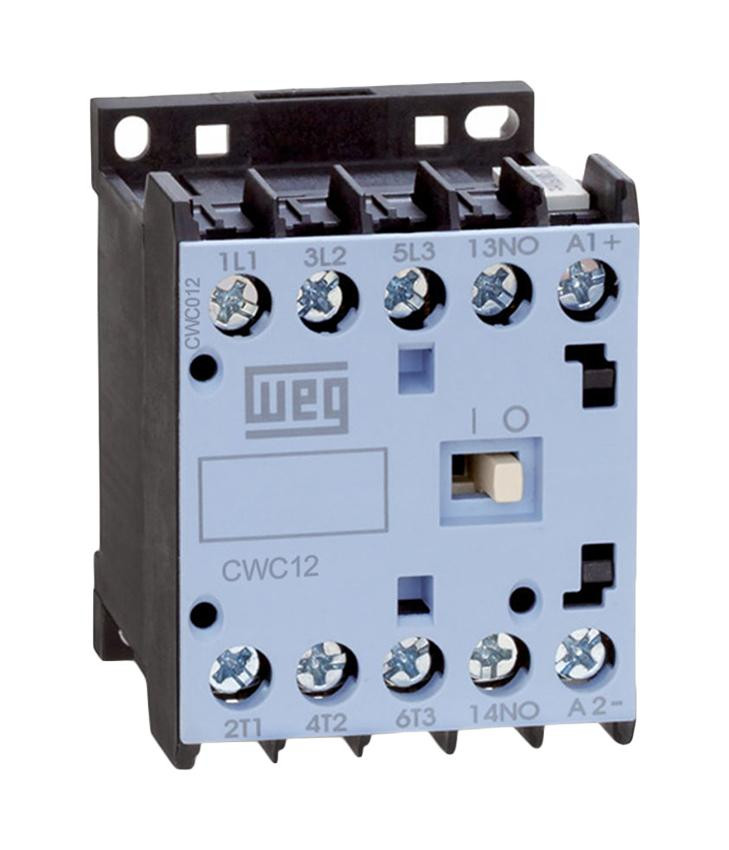

Mini Contactor, 12 Amp, 4NO Power Poles, 110V 50Hz/120V 60Hz, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series

SKU:: CWC012-00-40V18
Weight:: 0.43 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.

This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!

CWC0: Miniature power contactors
CWCA0: Miniature contactor control relay with AC or DC coil

Features Include:

Rated current: 12 A
Control voltage: 110V 50Hz/120V 60Hz
Main contact: 4 NO
Terminal type: Screw
Rated operational voltage Ue - IEC 60947-4-1: 1000 V
Rated operational voltage Ue - UL/CSA: 600 V

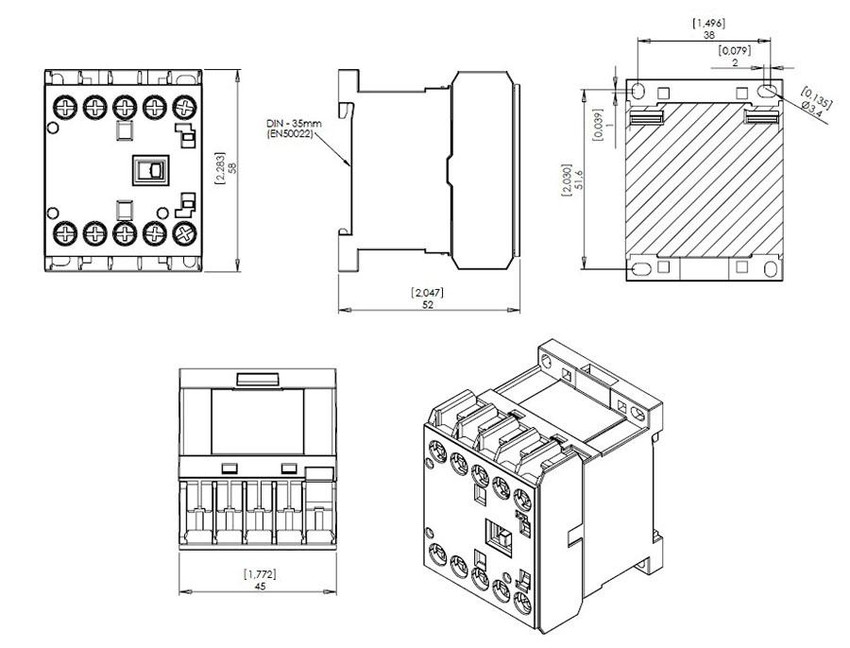

Height: 58 mm (2.28 in)
Width: 45 mm (1.77 in)
Depth: 52 mm (2.05 in)
AC and DC compact contactor with the same size for series up to 16 A, simplifying panel designs
Insulation voltage of 690 kV
The technology of the compact contactors with control in low-consumption DC current enables the use of smaller power supplies
Quick rail mounting
