EX9S32A2.5A
Noark

EX9S32A2.5A

$71.20

Manual Motor Starter, Ex9S32, 32A Frame, Rotary Handle, 1.6-2.5A Setting Range, DIN Rail Mount

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

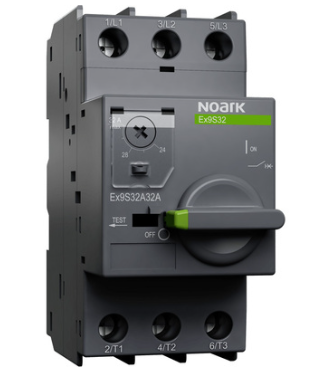

NOARK Ex9S32 manual motor starter combines disconnect, control, and overload protection in one device.
Description

NOARK Ex9S32 Manual Motor Starters combine manual isolation, manual motor control, and overcurrent protection (magnetic short-circuit protection plus Trip Class 10 thermal overload protection) in a single DIN-rail-mounted device, satisfying the NEC requirement for individual motor branch-circuit protection by a UL/CSA listed device.

Key Features

  • Combines disconnect, manual motor control, and overcurrent protection in one device
  • Magnetic (short-circuit) and Trip Class 10 thermal (overload) protection
  • Rotary handle operation, lockable for lockout/tagout
  • Rated up to 32A at 600VAC (Ex9S32 frame)
  • UL 60947-4-1 Type E self-protected combination motor controller
  • 5-year limited warranty from NOARK Electric

Certifications

  • UL 60947-4-1
  • UL 60947-1
  • IEC/EN 60947-1
  • IEC/EN 60947-4-1
