Overload Relay, Thermal Bimetallic, 2.9-4.0A Adjustable, Class 10, Manual/Auto Reset, 1NO/1NC, Phase Loss Sensitive, Direct Mount to CA7-9 to CA7-23 Contactors, CT7N Series
SKU:
CT7N-23-B40
Weight:
0.50 LBS
Minimum Purchase:
1 unit
2.9-4.0A CT7N thermal overload relay for CA7 contactors

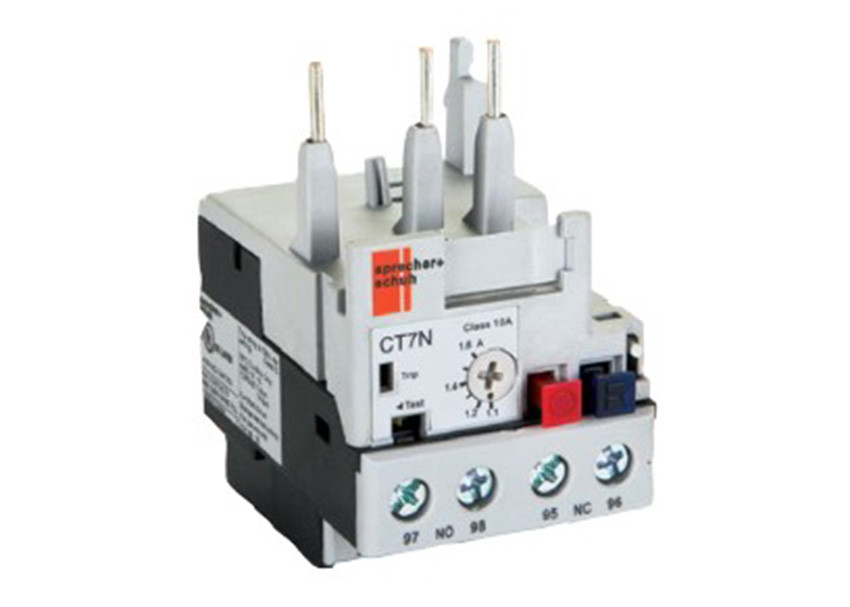

The Sprecher + Schuh CT7N bimetallic thermal overload relay protects three-phase motors from overload and phase loss and mounts directly to CA7 contactors to form a compact IEC motor starter. An adjustable current dial, selectable reset mode, and visible trip indicator make setup and troubleshooting straightforward.
Key Features
Adjustable bimetallic thermal overload protection, trip Class 10
Phase loss sensitive
Ambient temperature compensated from -20 to +60°C
Selectable automatic or manual reset
1NO signal contact isolated from the NC trip contact
Trip indicator flag visible on the front of the relay
Manual test/release of the auxiliary contacts
CT7N-23 relays mount directly to CA7-9 through CA7-23 contactors; separate DIN rail/panel adapter (CT7N-37-P-A) available
Overload Relay, Thermal Bimetallic, 4.5-6.3A Adjustable, Class 10, Manual/Auto Reset, 1NO/1NC, Phase Loss Sensitive, Direct Mount to CA7-9 to CA7-23 Contactors, CT7N Series

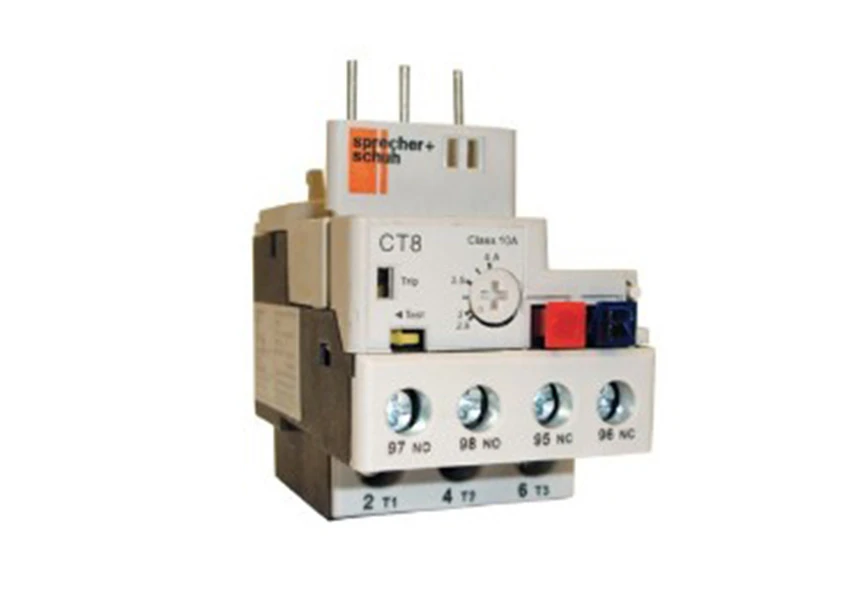

Overload Relay, Thermal, 2.9-4.0A Adjustable, Class 10, Manual/Auto Reset, 1NO/1NC, Phase Loss Sensitive, Test Release, Stop Button, Direct Mount to CA8-09 and CA8-12 Contactors, CT8 Series
