$233.10
CA7-23E-01-24E
$233.10

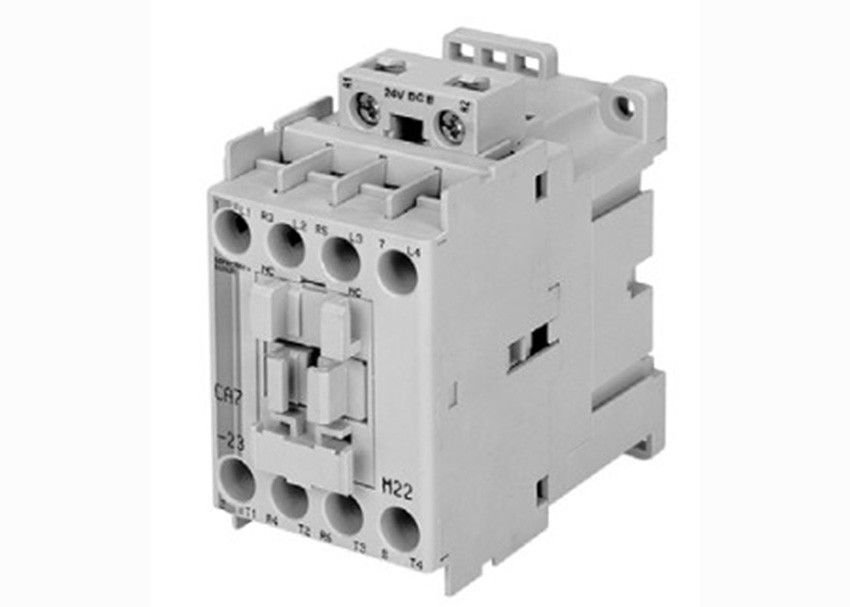

Contactor, IEC, 23A, 24VDC Electronic Coil, 3 Pole, 1NC Auxiliary, 15hp@460V/575V, 7.5hp@230V, 3hp@230V 1 Phase, Low Consumption Coil with Integrated Diode, CA7 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
The Sprecher + Schuh CA7 electronic DC coil contactor pairs the compact CA7 IEC contactor with a low-consumption electronic coil designed for direct control from PLC outputs. Holding power is under 1.7W, which allows smaller control power supplies and removes the need for interposing relays in many motor control circuits. Coil versions of 12V and 24V DC are the same size as AC coil CA7 contactors.
Key Features
- Electronic DC coil with integrated (built-in) diode for surge suppression
- Extremely low inrush and holding power under 1.7W/70mA
- Direct PLC control without interposing relays
- Mechanically linked (positively guided) main and auxiliary contacts per IEC 60947-5-1
- Cross-stamped auxiliary contacts for reliable low-current, low-voltage switching
- Field-reversible coil terminals; shipped with coil terminals on the line side
- Most standard CA7 accessories are interchangeable, including top and side mount auxiliary contacts
- DIN rail or screw mounting
- Mechanically and electrically compatible with CEP7 electronic overload relays and KT9 motor circuit controllers
- IP2X finger protection
Certifications
- RoHS compliant
- Meets IEC, UL, and CSA standard requirements
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$327.96
$412.80
Sprecher and Schuh
CA7-30E-10-24E
Contactor, IEC, 30A, 24VDC Electronic Coil, 3 Pole, 1NO Auxiliary, 20hp@460V, 25hp@575V, 10hp@230V, 5hp@230V 1 Phase, Low Consumption Coil with Integrated Diode, CA7 Series
$295.09
$195.03
