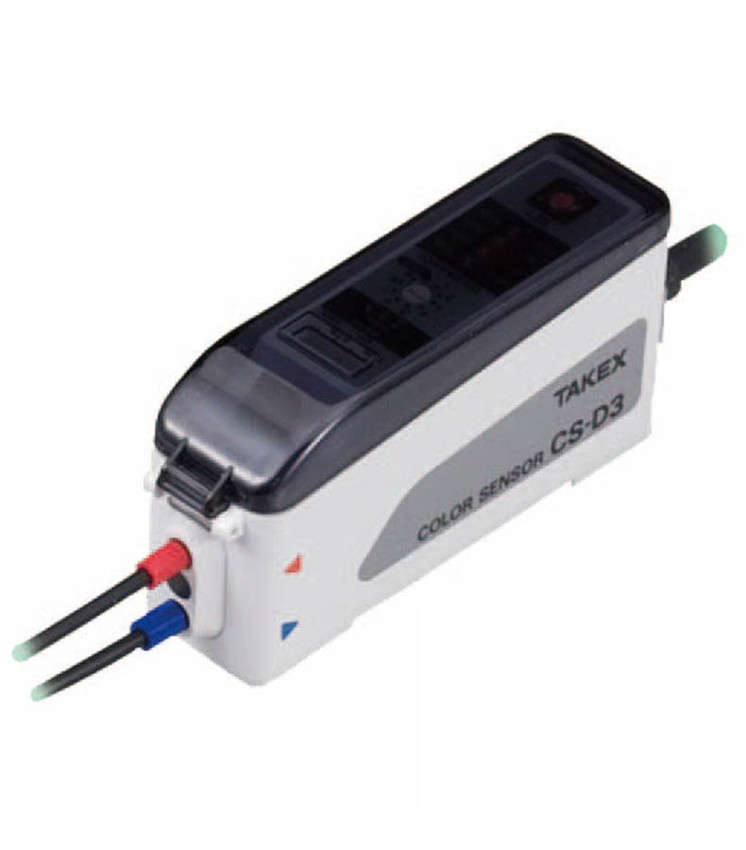

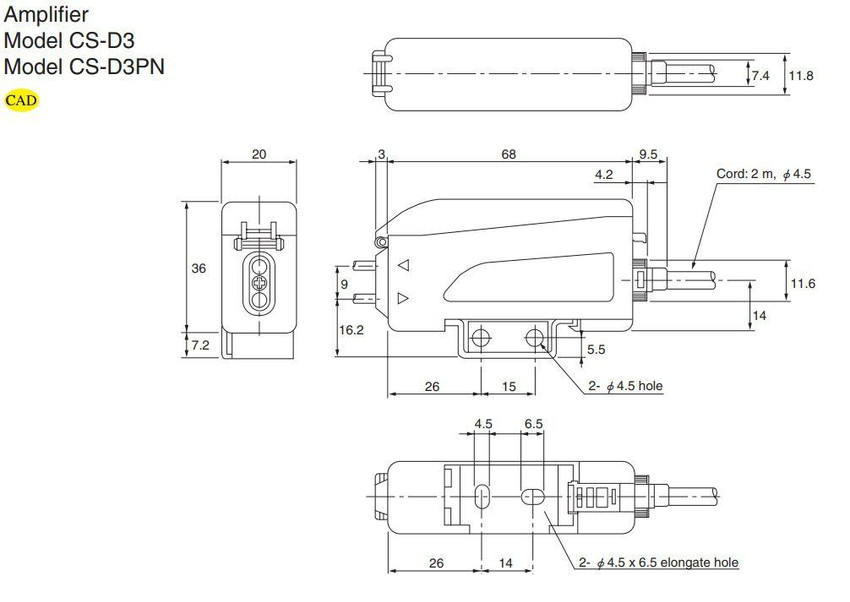

CS-D3

Color Sensor, Amplifier, Color Identification, NPN, RGB LEDs, Fiber Optic Cable, 13mm Detection

Features Include:

• Detection Method: Spectroscopy measurement by red/green/blue LEDs
• Power Supply: 12 – 24 VDC ±10% Ripple: 10 % max.
• Power Consumption: 1.6 W max.
• Control Output: PNP Open Collector output
• Output Rating: Source current 100 mA (30 VDC) max.
• Differentiation Factor: COL (color component)/C + Y (color component and brightness)
• Timer Function: Time disabled (NON)/Off-delay OFD) about 50 ms
• Light Source: Red, green, blue LEDs (RGB composition)
• Protective Feature: Output short circuit protection, power supply protection against reverse connection
• Protective Structure: IP 65 (with fiber optic cable attached)
• Connection: Permanently attached cord (Outer dimension: dia.4.5) 0.2 mm2 x 4 cores, 2 m
• Accessory: 1 mounting bracket, 1 screwdriver for setting, operation manual
• Ambient Light: –10 - +55 °C (non-freezing)
• Ambient Humidity: 35-85%RH (non-condensing)
• Vibration: 10-55 Hz / 1.5 mm amplitude / 2 hours each in 3 direction

Indicator:

• Power indicator (RUN): Yellow LED
• Illuminated while power is supplied, flashes during teaching
• Operation indicator (OP.): Orange LED
• Illuminated when output is activated, flashes during mix teaching
• Stability indicator (STB.): Green LED
• Illuminated for stable detection, flashes during auto teaching
• Error indicator (ERR): Red LED Illuminated to indicate teaching error, flashes to indicate sensor fail

Output Mode:

• NPN open collector output
• Sink current 100 mA (30 VDC) or less.

Response Time:

• Normal (NML) mode: 1 ms or less
• Average value (AVE) mode: 5 ms or less
