02070133UL

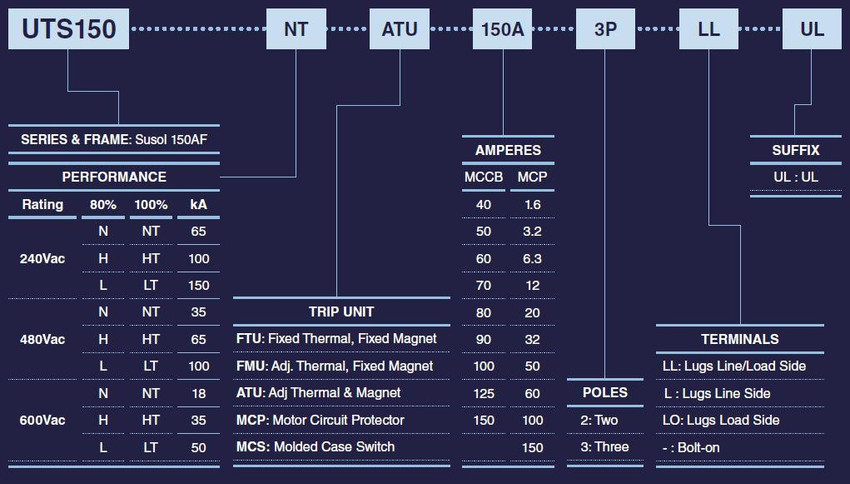

Alt: 2070133UL, UTS150L FTU 80A 3P LL UL
$726.25

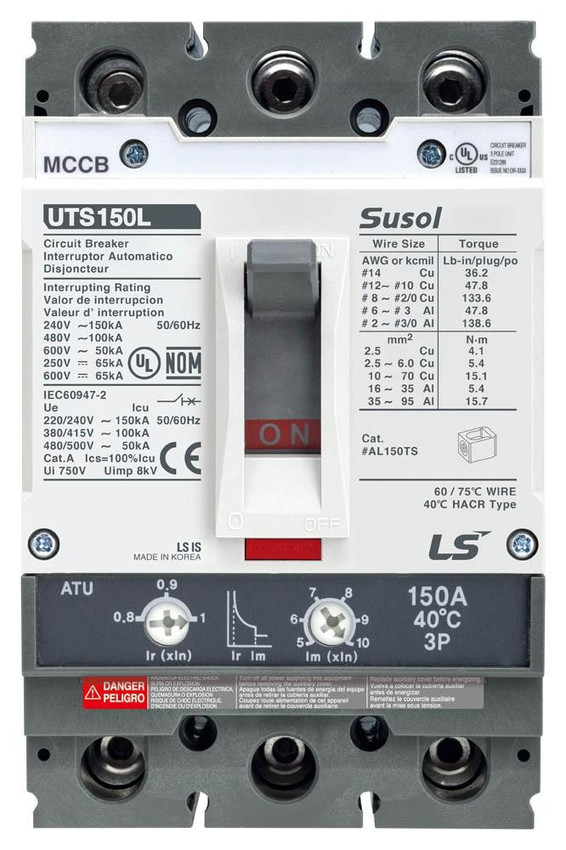

MCCB 80A 150KA 3 POLE
- Weight:
- 3.50 LBS
- Minimum Purchase:
- 1 unit
Description
The LS Electric Susol UTS/UTE Series molded case circuit breakers are designed to protect low-voltage electrical systems from overloads and short circuits across branch-circuit and feeder applications. The platform spans seven frame sizes covering 15A to 1200A ratings, letting a single circuit breaker family be specified across multiple project requirements.
Key Features
- Available in ratings from 15A to 1200A across seven frame sizes (UTE100, UTS150, UTS250, UTS400, UTS600, UTS800, UTS1200)
- Interrupting capacity (Icu) up to 100kA, with 80% or 100% Ics rated performance
- 2-pole and 3-pole configurations available
- Fixed thermal/magnetic (FTU) and adjustable thermal, fixed magnetic (FMU) trip unit options
- Line and load side lug terminals
- IP20 enclosure rating
- Rated up to 600V AC/DC, 50/60Hz
Certifications
- UL 489 Listed
