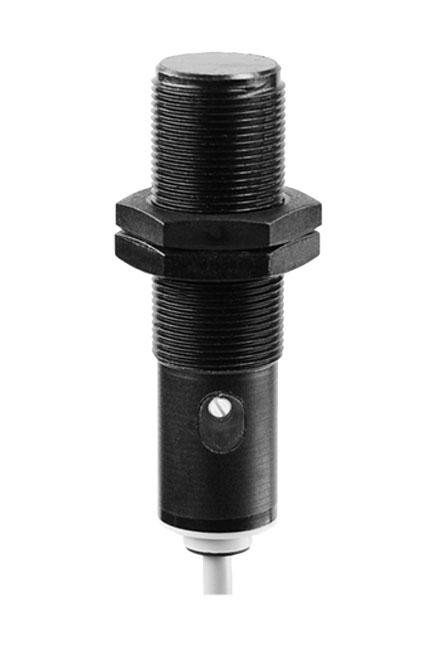

Baumer
CFAK 18N1200
Capacitive Proximity Sensor, Ø18mm Cyl., 15mm Range, Non-Flush, NPN NO, 2m Cable, IP67/65
$395.80
CFAK 22U9500/AMP
Alt: 11149600
$305.69
Capacitive Proximity Sensor, Ø22mm Cyl., Frequency Sweep, Oil, Non-Flush, AMPSEAL 16, IP69K
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Capacitive Proximity Sensor, Ø22mm Cyl., Frequency Sweep, Oil, Non-Flush, AMPSEAL 16, IP69K
Features Include:
- Special Type: Liquid level sensor for oil
- Version: Adhesion resistant
- Measurement Type: Contact with medium
- Mounting Type: Non-flush
- Voltage Supply Range +Vs: 4.75 - 5.25 VDC
- Current Consumption Max. (no load): 42 mA
- Current Consumption typ.: 10 mA
- Output Circuit: Voltage output
- Typical Response Time: < 1000 ms
- Load Resistance: ≥ 930 Ohm
- Connection Type: Connector AMPSEAL 16 3 pin
- Housing Material: PA 10T/X
Output State:
- In Air: 2.75 - 3.25 V
- In Liquid: 1.25 - 1.75 V
- Fault: 0.50 - 1.00 V
