Capacitive Proximity Sensor, 18mm, DC, NPN, NO

More Views

  • Capacitive Proximity Sensor, 18mm, DC, NPN, NO

Autonics - CR18-8DN

Quick Overview

Capacitive Proximity Sensor, 18mm, DC, NPN, NO, 3 Wire, 10-30VDC, 8mm Range
$49.95

Standard Stock

- +

Our Autonics CR series is an extremely cost effective line of capacitive proximity sensors.

This series makes it easy to adjust the sensing distance with built-in sensitivity adjustment volume. Capacitive proximity sensors will detect metallic and non-metallic materials including plastic, water, stone and wood.

Marshall Wolf Automation is your authorized Autonics distributor!

Additional Information
Part Number CR18-8DN
Product Series CR18
Type of Sensor Capacitive
Size 18mm
Normally Open or Closed Normally Open (NO)
Voltage DC
NPN or PNP NPN (Sink)
Shielded/Unshielded No
Connection See Spec
Product Series CR Series
Material Plastic
Ratings IP66
Availability Please Contact Us
Weight - lbs. 0.1600
Base Unit of Measure Each
Specification Tab

Features Include:

  • Able to detect Iron, metal, plastic, water, stone, wood, etc.
  • Long life cycle and high reliability
  • Easy to adjust the detecting distance by sensitivity adjustment potentiometer
  • Applications to control level and position
  • Size: 18mm or 30 mm
  • 18mm is plastic housing, 30mm is nickel-plated brass
  • Non-flush shielding
  • 3-wire DC or 2-wire AC models
  • Normally open or normally closed
  • 3-wire DC available NPN or PNP
  • Adjustable sensitivity
  • Detecting distance to 15mm
  • LED indication of output status
  • 2 meter cable
  • IP66 (18mm) or IP65(30mm)
Resources

Need More Information?

Features Include:



  • Able to detect Iron, metal, plastic, water, stone, wood, etc.

  • Long life cycle and high reliability

  • Easy to adjust the detecting distance by sensitivity adjustment potentiometer

  • Applications to control level and position

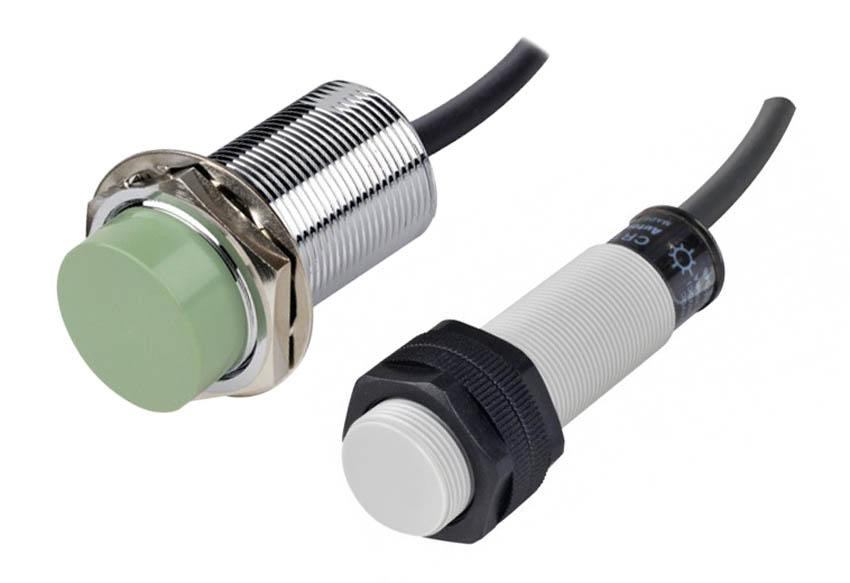

  • Size: 18mm or 30 mm

  • 18mm is plastic housing, 30mm is nickel-plated brass

  • Non-flush shielding

  • 3-wire DC or 2-wire AC models

  • Normally open or normally closed

  • 3-wire DC available NPN or PNP

  • Adjustable sensitivity

  • Detecting distance to 15mm

  • LED indication of output status

  • 2 meter cable

  • IP66 (18mm) or IP65(30mm)
