97.052.5553.1
Wieland

97.052.5553.1

Alt: Minimum Order Quantity of 20 Pieces, Price per Piece

$47.36

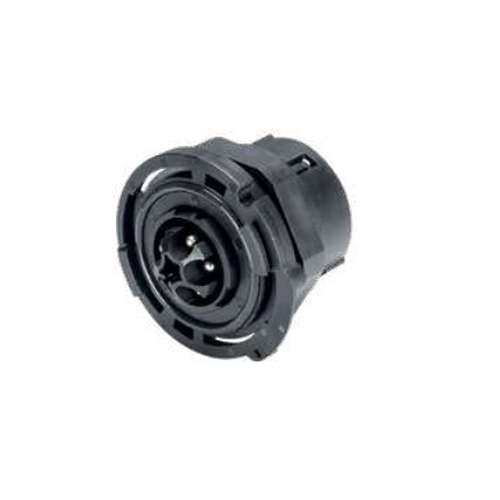

Device Connector, RST POWER, 5-Pole, Male, Black, Straight, 250/400VAC, 50A, M32 Thread, Screw Connection, Waterproof, IP66/67/69, Type 6P

Weight:
0.26 LBS
Minimum Purchase:
20 units
Adding to cart… The item has been added
High-current, waterproof RST POWER connectors for demanding outdoor installs.
Description

The Wieland RST POWER connector system is a high-current circular connector platform for demanding power distribution applications, available as cable-mount connectors and panel-mount device connectors. Mechanical and color coding helps installers confirm the correct mating pair before connecting.

Key Features

  • 250/400VAC application voltage, rated up to 600VAC (UL)
  • 50A rated current
  • IP66/67/69-rated sealing (Type 6P) supports outdoor and washdown environments
  • Screw-connection cable-mount connector accepts cable diameters from 15-25mm
  • M32 panel-mount thread on the device connector
  • Compatible with the RST POWER cover cap for sealing unused connectors

Certifications

  • cULus Listed
  • RoHS Compliant
