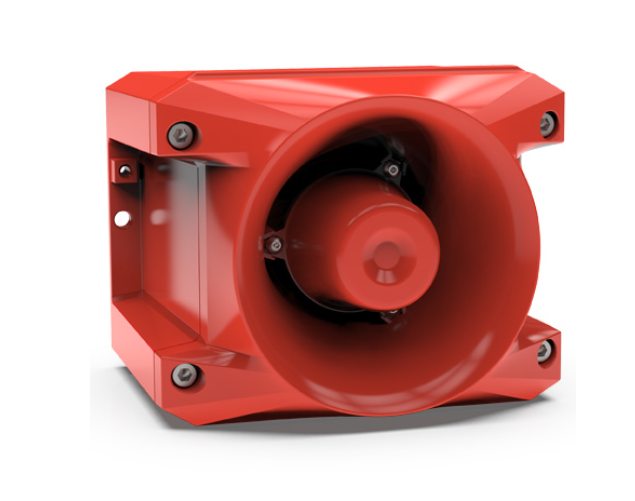

23150630601
Alt: 231 5063 0601, PRO 10
Multi-Tone Sounder, Functional Safety, 10-60VDC, 116dB(A), 7 SPL Levels, 80 Tones/4 Stages, Red Housing, Cast Aluminum, IK09, NEMA 4/4X, IP66/IP67
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit
Pfannenberg PROTECT Series PRO 10 sounders deliver high-output audible signaling built for the harshest indoor and outdoor environments. Housed in a virtually unbreakable, UV- and chemical-resistant die-cast aluminum enclosure rated IK09, the PRO 10 produces up to 116 dB(A) of sound with seven selectable output levels (86, 90, 94, 100, 106, 112, and 116 dB(A)), 80 selectable alarm tones across four programmable stages, and configurable sound timeout options (60 sec, 15 min, 45 min, or continuous). A pre-alarm and main-alarm function helps prevent startle reactions. A multi-voltage power supply and captive screws with a fixed seal simplify stocking and installation. The PRO 10 is available in standard (EN 54-3 and VdS fire-rated), marine (MED/DNV), functional-safety (SIL 2 / PL d), and explosion-proof (ATEX Zone 2 / Zone 22, UL Class I Div. 2) versions to match a wide range of safety requirements across factories, mining, oil and gas, and marine operations.
Key Features
- Up to 116 dB(A) nominal sound output; seven selectable SPL levels: 86, 90, 94, 100, 106, 112, 116 dB(A)
- 80 selectable alarm tones with four signaling stages and pre-/main-alarm function
- Configurable sound timeout: 60 sec, 15 min, 45 min, or none
- Multi-voltage models: 10-60VDC or 95-265VAC
- Virtually unbreakable die-cast aluminum housing, UV- and chemical-resistant, IK09 impact rating
- IP66 / IP67 and NEMA 4/4X ingress protection; operating range -40°F to 131°F
- Fixed seal and captive screws with threaded conduit connection for fast, secure installation
- 10-year warranty
Certifications
- CE
- UL Listed (UL Type 4/4X)
- RoHS Compliant
