Invertek
ODP-2-44200-3HF4A-MN
VFD, 20hp, 15kW, 30 Amp, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,440.32$2,440.32 -
Invertek
ODP-2-42150-3HF4A-MN
VFD, 15hp, 11kW, 46 Amp, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,935.85$2,935.85 -
Invertek
ODP-2-42100-3HF4A-MN
VFD, 10hp, 7.5kW, 30 Amp, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 4: 14.2 x 9.5 x 10.7" (HWD), OptiDrive™ P2, Performance
$2,706.76$2,706.76 -
Invertek
ODP-2-32075-3HF4A-MN
VFD, 7.5hp, 5.5kW, 24 Amp, 200-240V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Non-Switched, Frame Size 3: 12.2 x 8.3 x 9.3" (HWD), OptiDrive™ P2, Performance
$1,743.45$1,743.45 -
Invertek
ODP-2-42100-3HF4B-MN
VFD, 10hp, 7.5kW, 30A, 200-240V, 3 Phase, EMC Filter, TFT Display, Internal Brake Transistor, IP66 Switched Outdoor, Frame Size 4: 14.17 x 9.45 x 10.67" (360 x 240 x 271mm) (HWD)
$3,119.53$3,119.53 -
Invertek
ODP-2-64175-3HF42-MN
VFD, 175hp, 110kW, 202A, 380-480V, 3 Phase Input/Output, EMC Filter, Braking Resistor, TFT Display, IP20, 28.58 x 12.99 x 12.6" (HWD), OptiDrive™ P2, Performance (Free Non-Expedited LTL Freight from IL)
$8,337.76$8,337.76 -
Invertek
ODV-3-440390-3F12-MN
VFD, 25hp, 39A, 380-480V, 3 Phase, EMC Filter, TFT Display, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller
$1,995.75$1,995.75 -
Invertek
ODE-3-520720-3F42
VFD, 25hp, 72A, 200-240V, 3 Phase, EMC Filter, IP20, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions
$2,018.46$2,018.46 -
Invertek
ODP-2-44250-3HF4N-MN
VFD, 25hp, 39A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$2,197.60$2,197.60 -
Invertek
ODP-2-66150-3H04N-MN
VFD, 150hp, 150A, 500-600V, 3 Phase Input/Output, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
$9,885.92$9,885.92 -
Invertek
ODV-3-340180-3F1A-MN
VFD, 10hp, 18A, 380-480V, 3 Phase Input/Output, TFT Keypad, EMC Filter, NEMA 4X, IP66 Ourdoor Non-Switched, Energy Efficient Pump Control Drive, Built-In Multi-Pump Station Control Without a Separate PLC or Pump Controller, Includes
$1,619.31$1,619.31 -
Invertek
ODP-2-44250-3HF42-MN
VFD, 25hp, 39A, 380-480V, 3 Phase Input/Output, EMC Filter, Internal Brake Transistor, IP20, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN)
$1,623.19$1,623.19
Invertek is a global manufacturer of variable frequency drives. Their offering ranges from general purpose to a high end pump control series.
A 3-year warranty, readily available stock from Illinois, as well as being easy to install and use, make this a popular line of AC drives!
Choose Your Drive Type:
Learn More About Each Invertek Series:
Optidrive E3 General Purpose for Single Phase Motors
- 110-115V and 200-240V models available
- Single phase input/output
- IP20 or IP66/NEMA 4X outdoor models available
- Can be used with PSC (permanent split capacitor) or shaded-pole single phase induction motors
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for single phase motors now
Optidrive E3 General Purpose for Three Phase Motors
- 110-115V, 200-240V and 380-480V models available, up to 50 hp
- IP20 or IP66/NEMA 4X outdoor models available
- Sensorless vector control for all motor types
- General purpose drive
- 14 parameter basic setup
- Contactor style connection (top-in, bottom-out)
- Internal C1 EMC filter
- Cat C1 according to EN61800-3-2004
- Bluetooth connectivity
- Modbus RTU and CAN on board as standard
- Shop the Optidrive E3 for three phase motors now
Optidrive P2 High Performance
- 200-240V, 380-480V and 500-600V models available, up to 150hp
- 150% overload for 60 seconds, 200% overload for 4 seconds
- Industrial heavy duty rating for every mode
- IP20, IP55 or IP66/NEMA 4X outdoor models available
- Advanced motor control
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10C)
- Modbus RTU and CAN on board as standard
- Shop the Optidrive P2 high performance drives now
OptiPass: Bypass for Fan & Pump Control
- Available from 1 to 175hp in 200 to 480V models
- 3 Phase Input/Output
- BACnet built-in standard
- Reliable VFD and DOL control
- Low harmonic design - EN 61000-3-12 compliant
- Optional electronic bypass feature assures optimal time under VFD control with no need to manually change to bypass
- Shop the OptiPass Bypass drive now

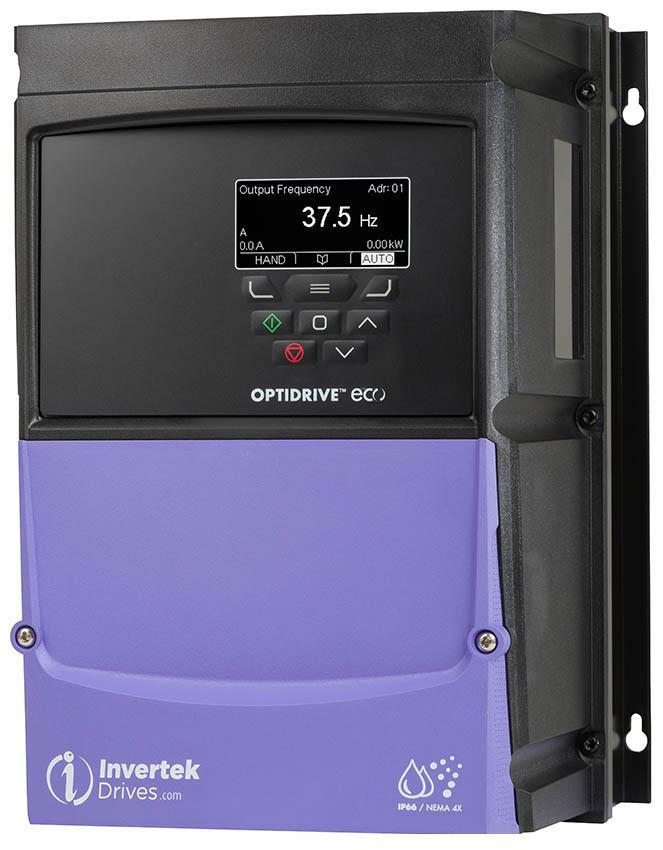

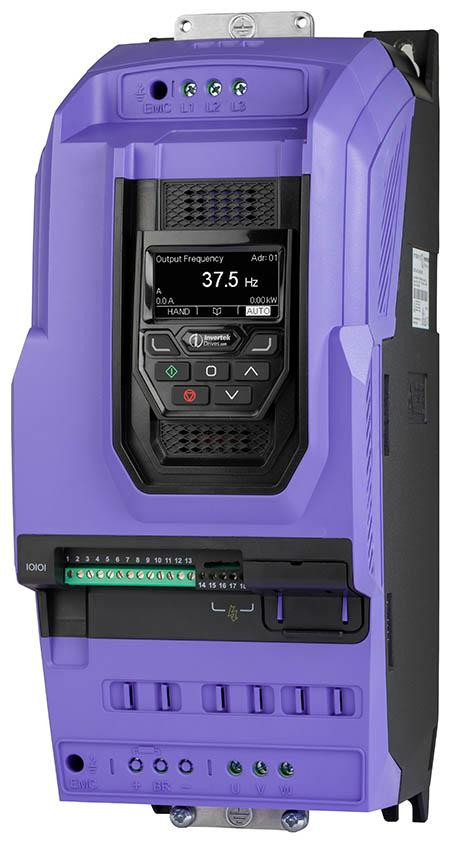

Optidrive Eco for Fan & Pump Control
- 200-240V (single or 3 phase options), 380-480V or 500-600V models available
- IP20, IP55 and IP66/NEMA 4X outdoor models available
- Control modes include; sensorless vector, PM vector control, BLDC control, synchronous reluctance
- Built-in PID controller
- Sizes 2-5, 6A, 6B and 8 cover power ranges up to 250kW/400hp
- Sensorless vector control for all motor types
- Optiflow multiple pump control
- BACnet Interface standard
- Internal EMC filter
- Shop Optidrive Eco drives now
