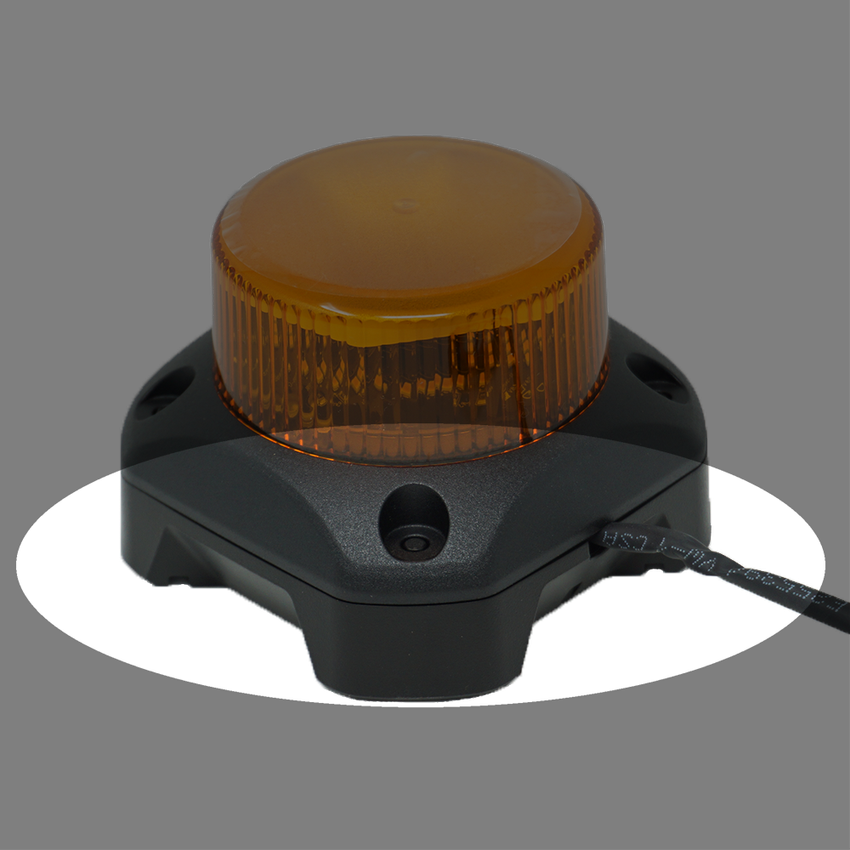

GL-001

Protect and inform with Patlite’s GF7 rotating beacon and GL7 flashing beacon—compact, durable visual signals designed to excel in extreme industrial, construction, and outdoor applications. Engineered with IP69K-rated housings, outstanding vibration and impact resistance, and versatile control options, these beacons provide dependable, compliance-ready signaling.

Key Features

• Ultra-rugged construction — IP69K-rated housing built to withstand high-pressure washdown, dust, and outdoor exposure.
• Superior vibration & impact resistance — Withstands 110 m/s² vibration and 1,000 m/s² impact for extreme durability.
• Flexible control modes — CAN-bus (SAE J1939) with up to 13 flash patterns and four brightness levels, or wire-lead controls for fixed pattern operation.
• Slim, space-saving design — Compact 68 mm body ideal for installation on space-constrained equipment.
• Multicolor visibility — Models available in red, amber, and green with distinct flash patterns for improved visibility.

• Same rugged foundation — IP69K housing, vibration, and impact resistance shared with GL7.
• Flowing 360° amber illumination — Smooth rotating amber light for clear, all-around visual signaling.
• Simple voltage input — Operates on straightforward 48 VDC with wire-lead control for vehicle and equipment use.
• Compact, low-profile build — Suitable for mobile or machinery-mounted applications.

Certifications & Compliance

• IP69K Rating — Highest-level protection against dust and high-temperature/high-pressure washdown conditions.
• Vibration & Shock Resistant — Complies with JIS D 1601 (110 m/s² vibration) and IEC 60068-2-27 (1,000 m/s² impact) standards.
• CAN-bus Compatibility — GL7 CAN models support SAE J1939 protocol for networked signaling and integration.
• CE / UKCA Conformity — Meets applicable EU/UK safety and EMC regulations.
