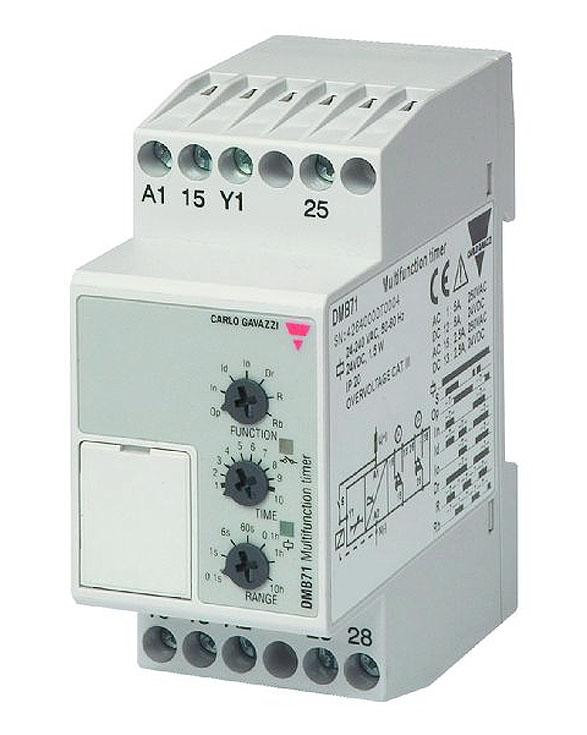

Product image is representative only, please verify specifications.

Carlo Gavazzi

DMB71DM24

Alt: DMB 71 D M24

$132.60

Analog Timer, 7 Function, DPDT, 0.1s-100h, 24VDC and 24 to 240VAC, DIN Rail Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DMB71DM24
DMB71DM24
DMB71DM24
DMB71DM24
Description

The Carlo Gavazzi DMB series is a multi-voltage timer with 7 knob-selectable functions and time ranges.

This timer is 17.5mm wide for SPDT (DMB51) and 35.5mm for DPDT (DMB71). You can back and front panel mount this series.

Marshall Wolf Automation is your authorized Carlo Gavazzi distributor!

Features Include:

  • Selectable time range 0.1 s to 100 h
  • Automatic or manual start
  • Repeatability: ≤ 0.2%
  • Output: 5 A DPDT relays
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 35.5 mm (DMB71D) DIN-rail housing (DIN 43880)
  • Combined AC and DC power supply
  • LED indication for relay status and power supply ON
  • Rated Insulation Voltage (Output): 250 VAC (rms)
  • Dimensions: 35.5 x 81 x 67.2 mm
  • Voltage Interruption: ≤ 10 ms

Power Supply (Rated operational voltage through terminals):

  • A1, A2 M24: 24 VDC ± 15%, 24 to 240 VAC + 10% -15%, 45 to 65 Hz
  • W24: 12 to 240 VDC + 10% -15% and 12 to 240 VAC +10% -15%, 45 to 65 Hz

7 knob selectable functions:

  1. Op - delay on operate
  2. In - interval
  3. Io - interval on trigger open
  4. Id - double interval
  5. Dr - delay on release
  6. R - symmetrical recycler ON first
  7. Rb - symmetrical recycler OFF first
