$177.45
IR-AM06-VI
Alt: iR Series
$198.45
Remote I/O, Analog Input Point: 4, Analog Output: 2
- Minimum Purchase:
- 1 unit
Description
The iR series are remote I/O that are available as Fieldbus coupler, analog (iR-A),digital (iR-D) or temperature options..
Features Include:
- Input Power: -10V ~ 10V, -20mA ~ 20mA
- Output Range: -10V ~ 10V, -20mA ~ 20mA
- Current Consumption: 70mA @ 5VDC
- Isolation: 500 VDC (Analog/Digital)
- Data Format: -10 ~ 10V, ±3200
- Number of Analog Inputs: 4

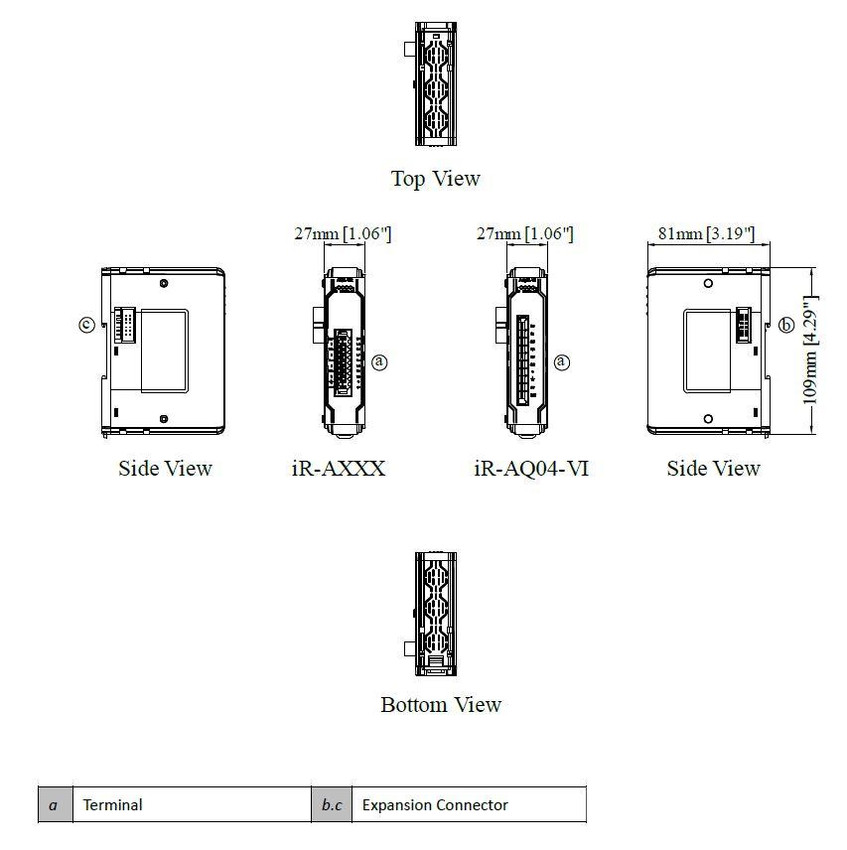

- Dimensions (WxHxD): 27 x 109 x 81 mm
- Mount: 35mm DIN rail mounting
- Vibration Endurance: Conforms to EN 60068-2-6 / EN 60068-2-27
- Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
- Operating Temperature: -20° ~ 50°C (-4° ~ 122°F)
