SCE-NG2970B120V
Alt: NexGen Enviro-Therm
$3,022.00

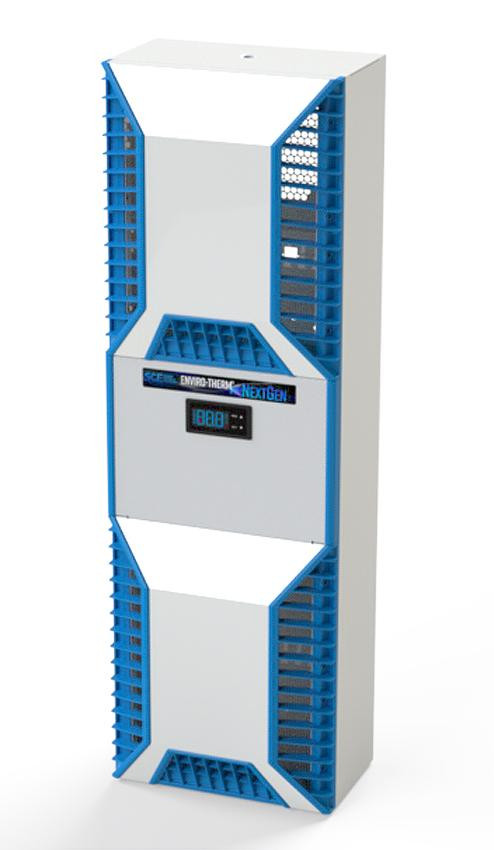

Air Conditioner, IS19, 2970 BTU/Hr., 120 Volt, 37.4H x 12W x 8.26D", NexGen Enviro-Therm Series
- Weight:
- 56.00 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw introduces their Enviro-Therm NextGen series of air conditioners!
This series is ideal for applications that do not require all the features of air conditioners designed for rugged outdoor use applications.
- Designed for indoor applications (or mild temperature outdoor ones)
- Slim design/narrow profile avoids the unit sticking out too far from the enclosure or taking up a lot of space
- Has controller/display on the exterior of the unit
- Includes modbus communications input
- Cooling capacities from 1195 BTU/Hr up to 14,300 BTU/Hr
- Can be used in enclsoures 10", 12", 16" deep
Marshall Wolf Automation is your authorized Saginaw distributor!
Features Include:
- Cooling Capacity @ 95°F / 95°F: 2820 BTU
- Cooling Capacity @ 95°F / 122°F: 820 W @ 50 Hz, 835 W @ 60 Hz
- Compressor: Rotary piston
- Refrigerant / GWP: R134a / 1430
- Refrigerant Charge: 175 g / 6.2 oz.
- High / Low Pressure: 363 / 87 psi
- Operating Temperature Range: 50°F - 140°F
- Air Volume Flow (System / Unimpeded): Ambient: 220 / 380 cfm, Enclosure: 205 / 323 cfm
- Mounting: Wall Mounted / Recessed
- Housing Material: Mild Steel, Powder Coated
- Dimensions (H x W x D): 37.40" x 12.00" x 8.26" inch
- Rated Operating Voltage / Frequency: 120 V ~ 50/60 Hz
- Rated Current @ 95°F / 95°F: 4.2 A
- Starting Current: 28 A
- Max. Current: 6.8 A
- Nominal Power 95°F / 95°F: 440 W
- Max. Power: 700 W
- Fuse Rating: 15 A (T)
- Connection: 5 pole terminal for signals, 4 pole terminal for power, 3 pole terminal block for RS 485 Modbus
- NEMA Protection Class: Type 3, 3R, 12, 4
