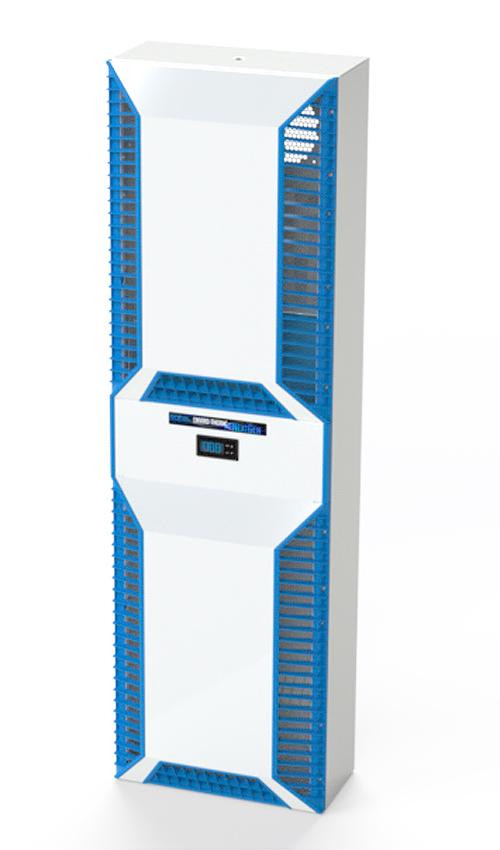

SCE-NG14300B230V

Saginaw introduces their Enviro-Therm NextGen series of air conditioners!

This series is ideal for applications that do not require all the features of air conditioners designed for rugged outdoor use applications.

• Designed for indoor applications (or mild temperature outdoor ones)
• Slim design/narrow profile avoids the unit sticking out too far from the enclosure or taking up a lot of space
• Has controller/display on the exterior of the unit
• Includes modbus communications input
• Cooling capacities from 1195 BTU/Hr up to 14,300 BTU/Hr
• Can be used in enclsoures 10", 12", 16" deep

Marshall Wolf Automation is your authorized Saginaw distributor!

Features Include:

• Cooling Capacity @ 95°F / 95°F: 14,300 BTU
• Cooling Capacity @ 95°F / 122°F: 3.5 kW @ 50 Hz / 3.9 kW @ 60 Hz
• Compressor: Rotary piston
• Refrigerant / GWP: R134a / 1430
• Refrigerant Charge: 570 g / 20.1 oz
• High / Low Pressure: 460 / 87 psi
• Operating Temperature Range: 50°F - 140°F
• Air Volume Flow (System / Unimpeded): Ambient: 590 / 825 cfm / Enclosure: 441 / 706 cfm
• Mounting: Wall Mounted / Recessed
• Housing Material: Mild Steel, Powder Coated
• Dimensions (H x W x D): 59.10" x 17.91" x 10.63" inch
• Rated Operating Voltage / Frequency: 380-415 V 50 Hz 3~ / 400-460 V 60 Hz 3~
• Rated Current @ 95°F / 95°F: 3.5 A @ 50 Hz /3.7 A @ 60 Hz
• Starting Current: 50 A
• Max. Current: 14.8 A
• Nominal Power 95°F / 95°F: 410 W @ 50 Hz / 430 W @ 60 Hz
• Max. Power: 3.4 kW
• Fuse Rating: 20 A (T)
• Connection: 5 pole terminal for signals, 4 pole terminal for power, 3 pole terminal block for RS 485 Modbus
• NEMA Protection Class: NEMA 3, 3R, 4

Technical Information:

• Saginaw SCE-NG14300B230V User Manual and Technical Data
• Saginaw Enviro-Therm NextGen Thermal Management Brochure
