$431.60
ADAM-6066-D
Alt: ADAM 6000 Series
$284.00

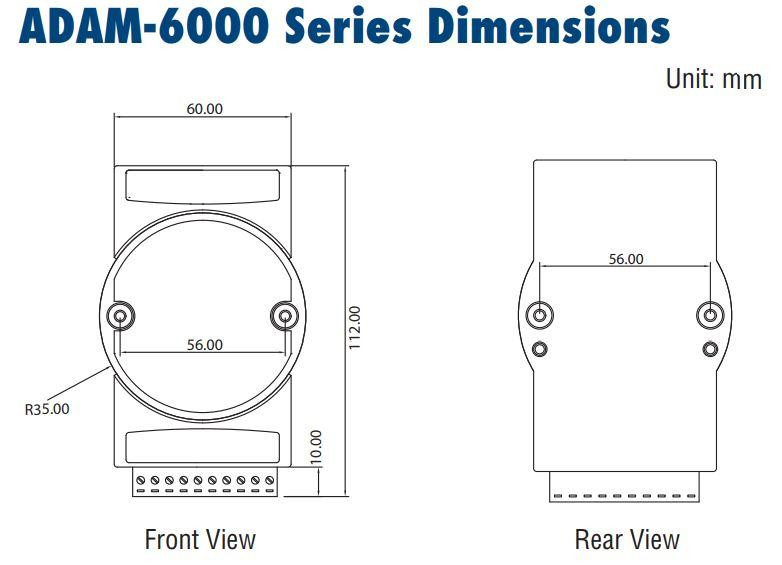

Ethernet I/O Module, 6 Channel Power Relay Module, 6 Digital Output / 6 Digital Input, 120 x 70 x 30mm (HWD)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Input Voltage: 10~30 VDC
- Contact Rating (Resistive): 3 A @ 30 VDC, 5 A @ 250 VAC
- Relay Type: 1 x Form A
- Interface: Ethernet
- Isolation Voltage: 2,000 VDC
- Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
- Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
- I/O:6ch relay/6ch digital input(counter)
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
