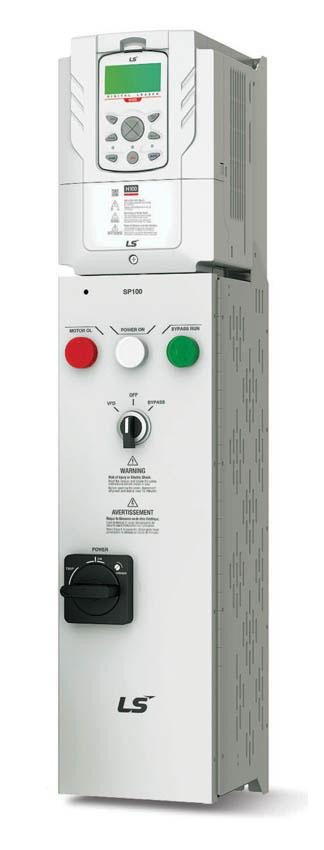

LSLV0075SP100-4CEFD
LS Electric

LSLV0075SP100-4CEFD

Alt: 6737003100

$2,336.04

VFD, 10hp, 16 Amp (16A) ND (VT) / 7.5hp, 12 Amp (12A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass

Weight:
37.48 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Designed for variable torque fan and pump (HVAC) applications!
Description
The LS SP100 Bypass was designed for HVAC applications!

Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.

Features of the SP100 series:
  • 3 contactor bypass
  • HAND/OFF/AUTO LCD keypad
  • Compact, NEMA 1
  • Built-in DC reactor standard
  • Easy wiring and installation
  • Auto bypass function
  • Motor OL trip detection
  • Built-in Modbus RTU, BACnet, MS/TP
  • KEB, Kinetic Energy Buffering
  • Built-in five relay outputs
  • Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)

This is the ideal VFD packaged solution for variable torque fan and pump applications!


Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Available Now!

LS Electric

LSLV0075SP100-4CEFD3

VFD, 10hp, 380-480VAC, Three Phase, Bypass, Built In DC Reactor, 3 Contactor Bypass, 16 Amp (16A), This Series is Currently Undergoing a Redesign and May Have Extended Lead Times or Become Unavailable. Please Verify Before Ordering.

$2,093.15

LS Electric

LSLV0150SP100-4CEFD

VFD, 20hp, 30 Amp (30A) ND (VT) / 15hp, 22 Amp (22A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 2: 8.26 x 46.41 x 10.27" (WHD), SP100 Bypass

$3,287.76

LS Electric

LSLV0075SP100-2CEND

VFD, 10hp, 30 Amp (30A) ND (VT) / 7.5hp, 24 Amp (24A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass

$2,768.64

LS Electric

LSLV0220SP100-4CEFD

VFD, 30hp, 45 Amp (45A) ND (VT) / 25hp, 35 Amp (35A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 3: 9.83 x 51.65 x 11.33" (WHD), SP100 Bypass

$4,152.96

LS Electric

LSLV0300SP100-4CEFD

VFD, 40hp, 61 Amp (61A) ND (VT) / 30hp, 41 Amp (41A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 3: 9.83 x 51.65 x 11.33" (WHD), SP100 Bypass

$4,931.64
