8824211060
Alt: SSR-4860 60 A / 480 VAC with Heat Sink NDP3-120
$114.00

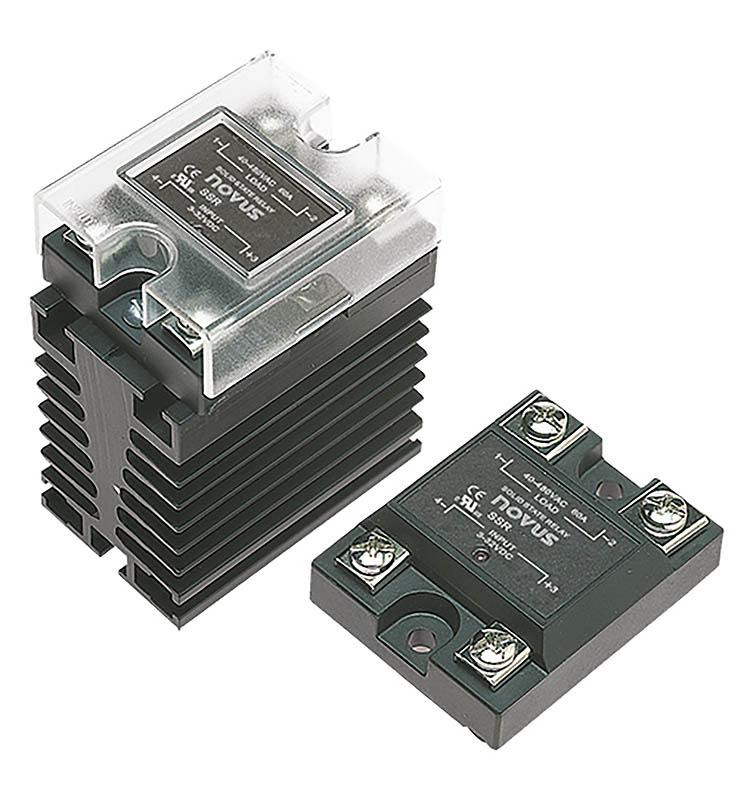

Solid State Relay with Heat Sink, SSR-4860, 60 Amp, 480VAC, Heat Sink NDP3-120
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Load Current (IL): 60 A rms
- Load Voltage: 40 to 480
- Voltage Drop (Vssr): 1.6 to 1.8 V rms
- Leakage Current: < 5
- Frequency: 47 to 63 Hz
- I²t (50/60 Hz): 1770 / 1629 A²s
- Dv/dt: 300 V/μs
- Control Voltage: 3 to 32 VCC
- Control Current: 6 to 25 mA
- Switching Time: < 10 ms
- Isolation: 2000 V
- No electrical noise, sparking, or mechanical wear
- LED status indicator of the trigger signal
- Metal isolated housing
- Internal dv/dt protection snubber sized to switch resistive or inductive loads with power factor up to 0.5
- Zero Crossing: Turns on at zero Volt, turns o at zero Amps
- Optical isolation between command and power
