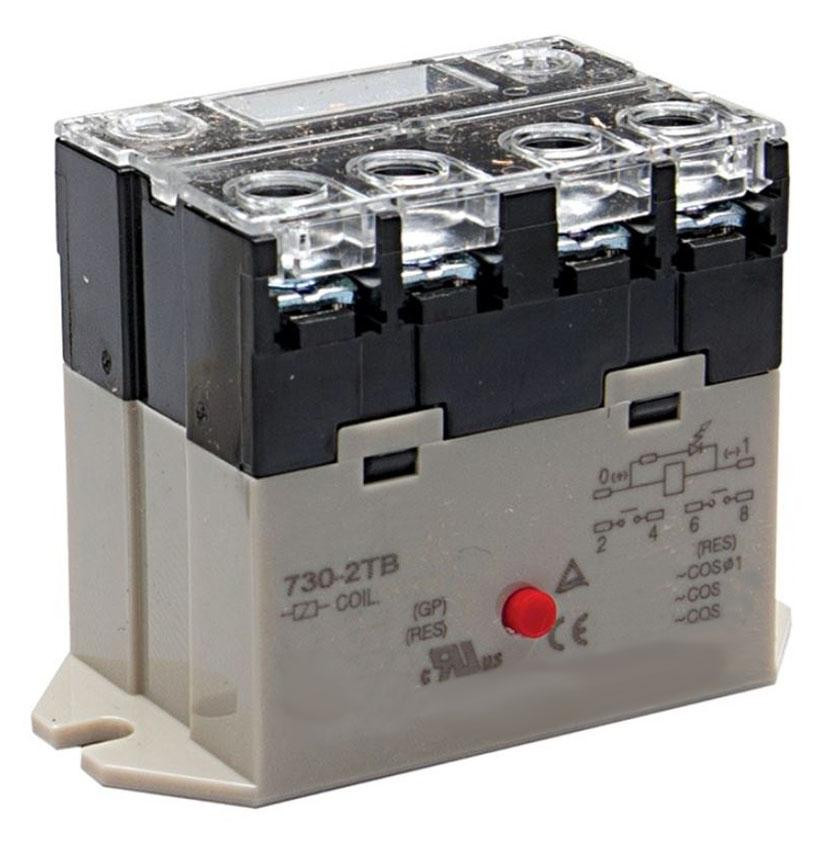

730-2TB-110VAC
Alt: K730 Series
$16.64
Electro Mechanical Power Relay, Panel Mount and Screw Terminals, 25A, DPST NO, 110VAC Coil Input
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Configuration: DPST NO(2a)
- Material: Silver alloy
- Rated current: 25A
- Rated Max. Resistive Load: 25A at 30VDC/277VAC
- Max. Switching Voltage: DC900W/AC8, 310VA, DC750W/AC5, 500VA
- Min. Switching requirement: 100mA 5VDC
- Voltage range: 6VDC to 110VDC, 6VAC to 240VAC
- Power consumption: DC: approx. 1.9W, 6-48VAC: 1.7-1.9VA, 100/120VAC: 1.9-2.7VA, 200/240VAC: 1.8-2.6VA
- Minimum operating voltage: 80% of the rated coil voltage
- Dropout voltage: DC Coil: 10% of rated voltage, AC Coil: 30% of rated voltage
- Operating Time: 30ms max. at rated coil voltage
- Ambient temperature: -10 ~ +60°C(-14°F~140°F) at nonfreezing
- Weight: TB Type: 90g (3.2oz), QB Type: 120g (4.2oz)
Technical Information:
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
730-1TR-110VAC
Electro Mechanical Power Relay, 30A, SPST NO, 110VAC Coil Input, DIN Rail Mount and Screw Terminals
$13.44
Kacon
730-2QB-110VAC
Electro Mechanical Power Relay, Panel Mount and Quick Connector (#250), 25A, DPST NO, 110VAC Coil Input
$15.46
Kacon

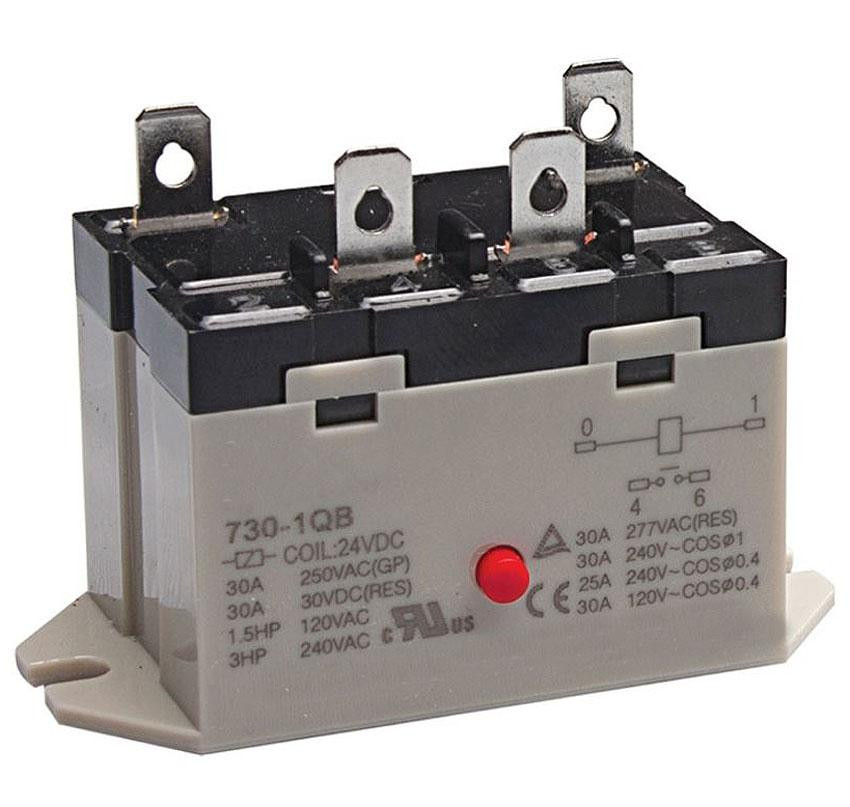

730-1QB-110VAC
