Product image is representative only, please verify specifications.
6314242533
Alt: 631.4242.533, MAK-4212-F-1
$79.41

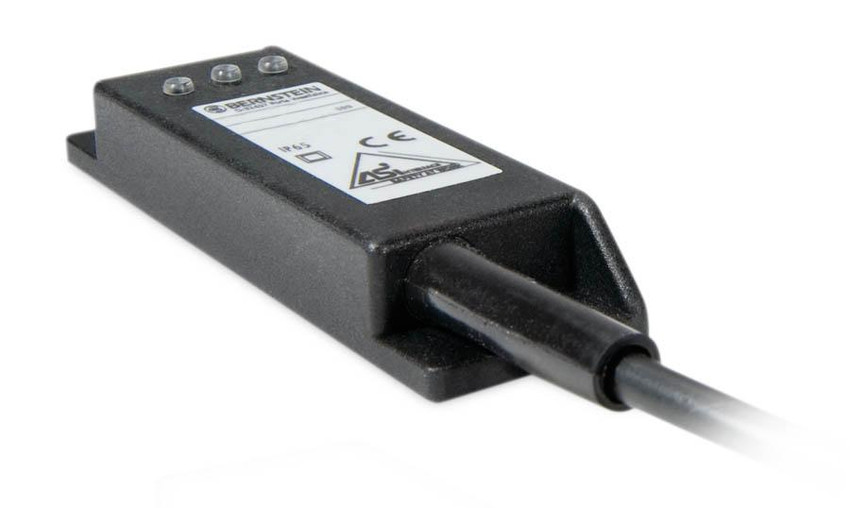

Magnetic Switch Non-Contact, Part of Safety System Can Be Used w/Safety Evaluation Unit (MUZ Series)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Assured Operating Distance: 25 mm
- Switching Element Function: N.O.
- Reed Contact Max. Switching Voltage: 250 V
- Reed Contact Max. Switching Current: 3 A
- Reed Contact Max. Switching Capacity: 100 VA
- Ambient Temperature (min/max): -5°C/+70°C
- Protection Class: IP67
- Enclosure: PA6.6, black; encapsulated reed contact
- Termination Type: Cable 2 x 0,5 mm2, PVC -outer jacket black
