608.3000.361
Alt: 6083000361, IN62-SU1 FF, This is the Recommended Replacement for 608.6190.078
$77.59

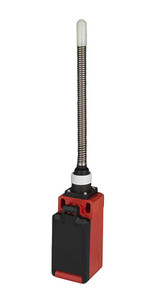

Limit Switch, 1NC/1NO
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated insulation voltage Ui: 400 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated operational voltage: Ue 240 V AC / 24 V DC
- Rated supply frequency: AC 50 / 60 Hz
- Overvoltage category II acc. EN 60947-1 annex H table H1
- Conv. thermal current Ithe: 5 A
- Minimum current: 1 mA
- Short-circuit protective device: Fuse 4 A gG
- Rated conditional short-circuit current: 400 A
- Actuator: Wobble stick with plastic slide
- Contact type: 1 N.C., 1 N.O. (Form Zb)
- Connection: 4 screw connections (M3)
- Standard switches conforming to DIN EN 50047
- High reliability at low currents (1 mA)
- Protection class: IP67
- Hinged snap-on cover
- Slow-action and snap-action contacts
- Mechanical service life: up to 30 million switching cycles
Technical Information:
- Bernstein IN62-SU1 FF Plastic Bodied Limit Switch Technical Data
- Bernstein IN62, IN65 &I81- Series Modular Plastic Body Position & Limit Switches Catalog
- Bernstein IN62 Series Plastic Body Position Switches Installation and Operating Instructions
- Bernstein Position Switches and Sensors Product Catalog
