Product image is representative only, please verify specifications.
608.3000.246
Alt: I81-U1Z AHK
$60.35

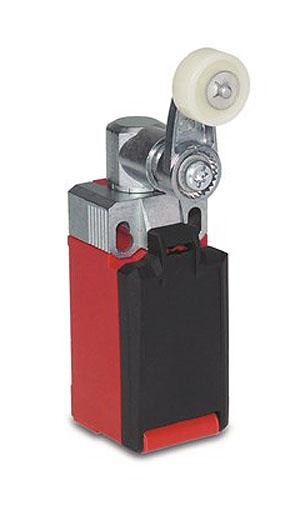

Limit Switch, Latching Style, 1NC/1NO, Slow Action
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Operational Voltage: 240 V AC / 24 V DC
- Rated Supply Frequency AC: 50/60 Hz
- Conv. Thermal Current: 5 A
- Rated Conditional Short-Circuit Current: 400 A
- Minimum Current: 1 mA
- Enclosure: Thermoplastic, glass fiber reinforced (UL 94-V0)
- Actuator: Plunger (Thermoplastic (UL 94-HB))
- Connection: 4 screw connections (M3)
- Integrated latch function: After actuation manually reset by pulling the blue button necessary
- Modular design
- High reliability at low currents (1 mA)
- Tool-free turning and changing of actuator elements
- Metal actuator locking
- Metal mounting clip
- Protection class IP66 and IP67
- Hinged snap-on cover
- Slow-action and snap-action contacts
- Mechanical service life: 100.000 switching cycles
