Product image is representative only, please verify specifications.
6061500570
Alt: 606.1500.570, F1-ZSP3D
$372.98

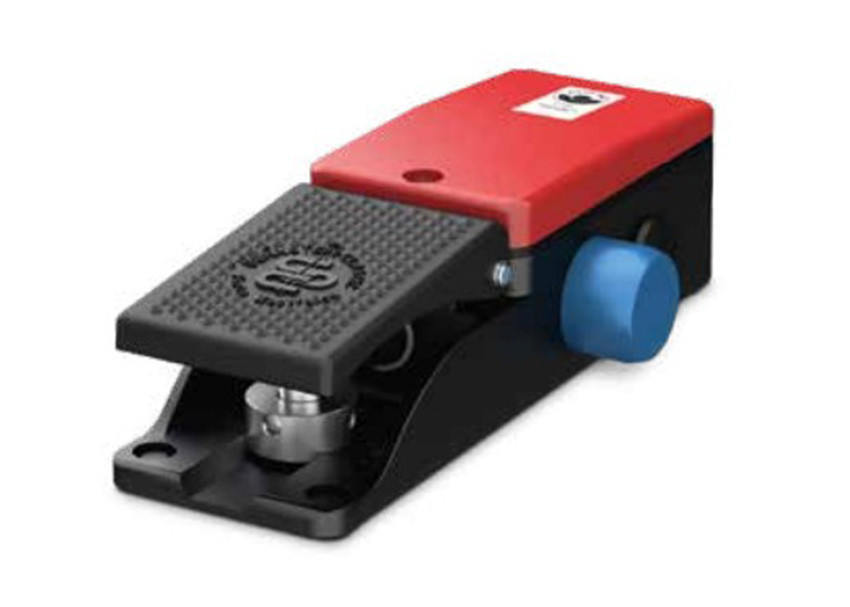

Foot Switch, Single Pedal
- Minimum Purchase:
- 1 unit
Description
Series Features Include:

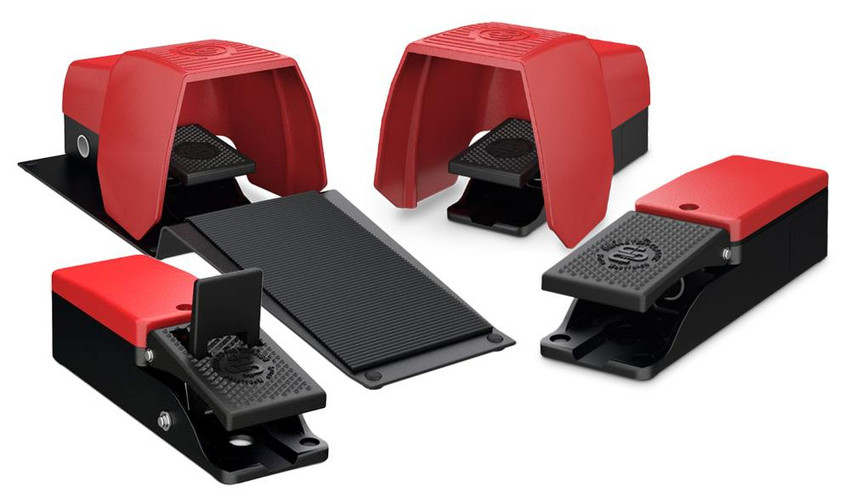

- Available un-guarded, or with protective shroud (UN)
- Snap action and Slow action contacts
- Protection Class - IP 65, IP 67 option available
- Contacts 1NC / 1NO, 2NC / 2NO & SiPf available
- Pressure point up to 460N available
- Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT), potentiometer (Mi RG) and other additional functions
- Foot switch enclosure - Cast aluminum
- Foot switch cover, Protective Shroud - Cast aluminum
- Foot switch pedal - Thermoplastic
- Cable Entry - M20 x 1.5
- B10d = up to 20 Mio
- Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
