3009C3.
$6,725.00

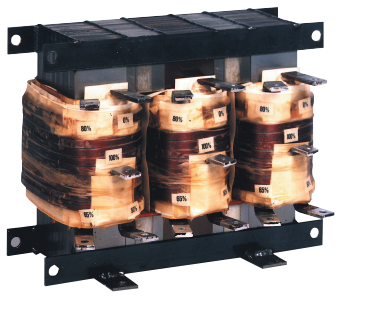

Motor Starting Autotransformer, 300hp, 480V, 60Hz, Copper Wound, 3 Phase, 3 Coil, 220°C, Medium Duty Service, Mechanical Lugs, CSA, UL Approval, Core & Coil Encl.: 12 x 15.75 x 12.25" 305 x 401 x 312mm) (HWD), Mounting Width: 9" (229mm), Mo
- Weight:
- 275.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Hammond Power Solutions 3A Series is a 3-coil motor starting autotransformer designed to reduce inrush current by stepping down applied voltage during motor start-up, for medium-duty applications such as pumps, compressors, conveyors, and fans. The 3-coil, three-phase Wye configuration provides balanced voltage across each phase.
Key Features
- 3-coil, three-phase Wye configuration for balanced starting voltage
- Copper wound, 220C insulation class
- Medium-duty service rating
- Taps at 50%, 65%, and 80%
- Mechanical lug termination
- Manufactured to NEMA ICS-1970 standards
- Rated 480V, 60Hz
Certifications
- CSA Certified
- UL Approved
