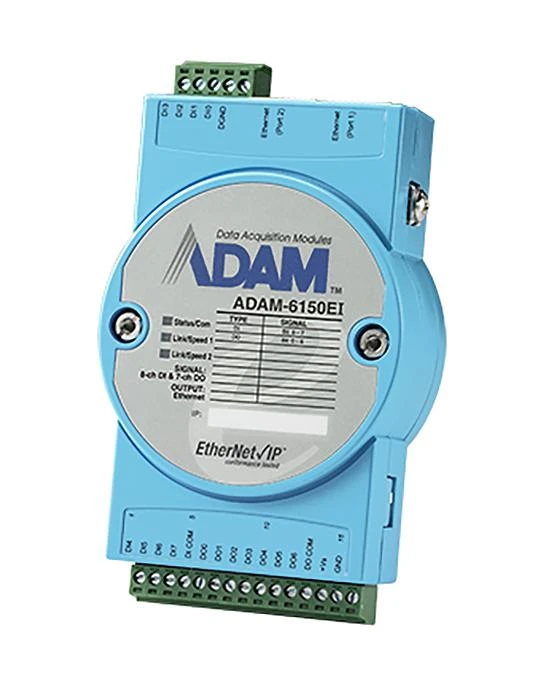

ADAM-6150EI-AE
Alt: ADAM 6000 Series
$415.00
15-Channel Isolated DI/O EtherNet/IP Module
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Input Voltage: 10~30 VDC
- Output Voltage: 8~35 VDC
- Sink Current: 100 mA max./channel
- Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
- 8ch digital input/7ch digital output
- Protocol : EtherNet/IP
- 2 x RJ-45 LAN for Daisy-chain connectivity
- 2500VDC isolation protection
Input Voltage:
- Dry Contact
- Logic level 0: open
- Logic level 1: close to GND
- Wet Contact
- Logic level 1: 10~30 VDC and -10~-30 VDC
- Logic level 0: -3~3 VDC
