04009ET3E365T-W22
Available from manufacturer (as of 11/19/2026)

04009ET3E365T-W22

Alt: 11355727

$10,852.66

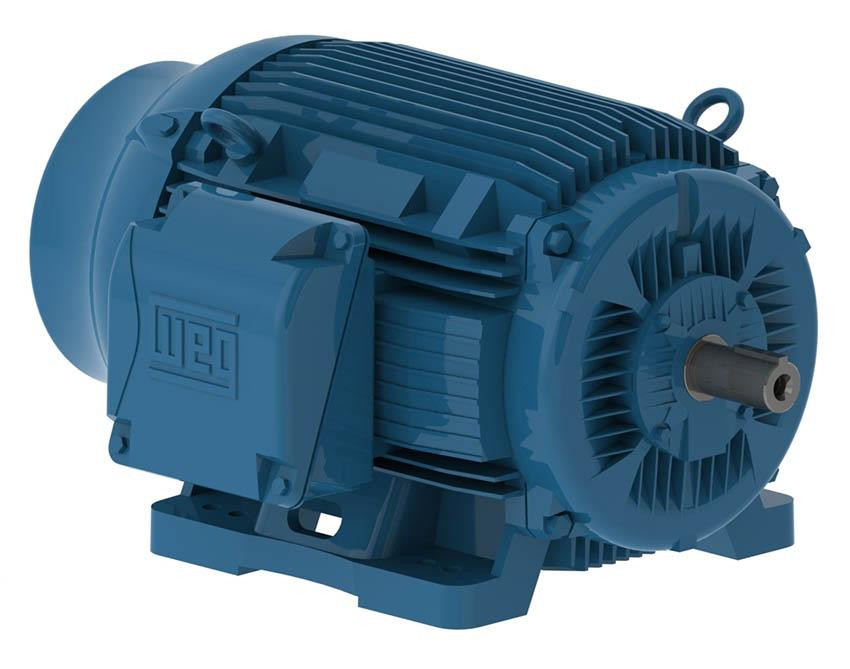

Motor, 40hp, 900 rpm, 8 Pole, Three Phase, 230/460//380V, 60//50Hz, 364/5T Frame, NEMA Premium Efficiency, IC411- TEFC, Footed, No Flange, F-1 Mounting, Left Position Terminal Box, IP55

Weight:
865.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
IEEE severe-duty motors built for demanding industrial environments
Description

The WEG W22 TEFC motor line is built on WEG's cast iron W22 platform for general-purpose industrial drives such as pumps, fans, compressors, and conveyors. These three phase motors pair a totally enclosed fan cooled design with NEMA Premium or Super Premium Efficiency, and they are inverter duty rated for use with variable frequency drives.

Key Features

  • Cast iron frame construction for rigid, low-vibration mounting
  • Totally enclosed fan cooled (TEFC) design with IP55 protection against dust and water
  • NEMA Premium Efficiency, with NEMA Super Premium Efficiency ratings also offered
  • Inverter duty per NEMA MG1 Part 31 for variable frequency drive applications
  • Three phase, 60Hz operation
  • Select catalog numbers include an AEGIS bearing protection ring or roller bearings
