O200.ZR-GW2I.72CV/A014_E026_H006
Baumer

O200.ZR-GW2I.72CV/A014_E026_H006

Alt: 11231270

$214.20

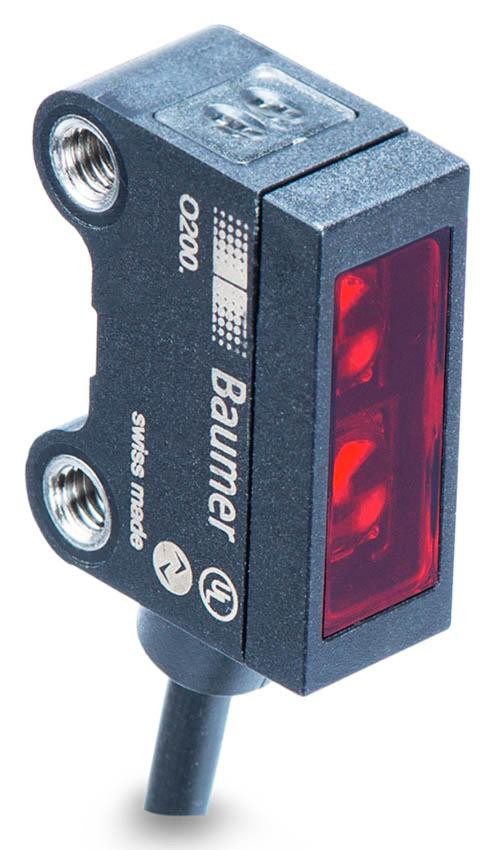

Photoelectric Diffuse Sensor with Intensity Difference, IO-Link Dual Channel, Pulsed Red LED

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.

Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.

Features Include:

  • Type: Intensity difference
  • Version: IO-Link dual channel
  • Light source: Pulsed red LED
  • Sensing distance Tw: 20 - 200 mm
  • Smallest object recognizable typ.: 2 mm at 100 mm
  • Alignment / soiled lens indicator: Flashing output indicator
  • Beam type: Point
  • Voltage supply range +Vs: 10 - 30 VDC
  • Current consumption max. (no load): 45 mA (@ 10 VDC)
  • Current consumption typ.:16 mA (@ 24 VDC)
  • Voltage drop Vd: < 2 VDC
  • Output function: Light / dark operate
  • Output circuit: Push-pull

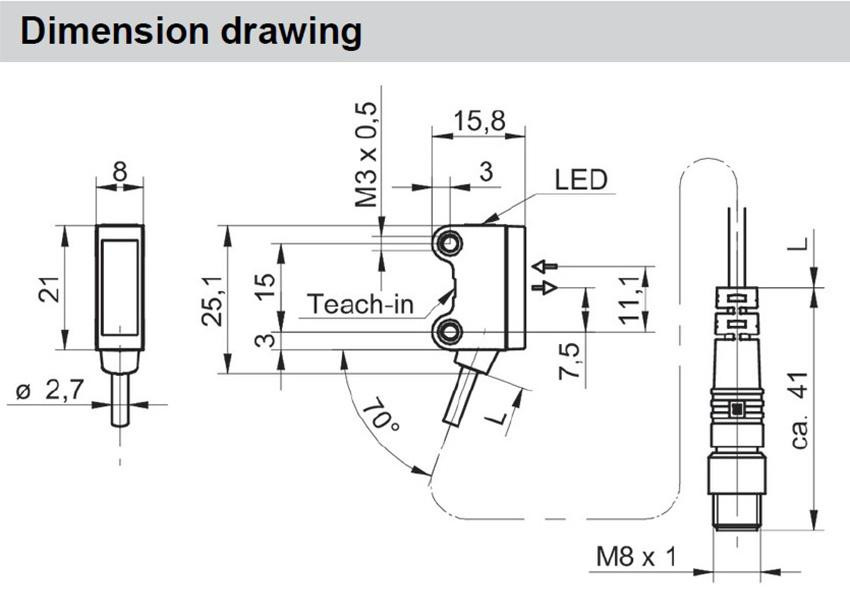

  • Width / diameter: 8 mm
  • Height / length: 25.1 mm
  • Depth: 15.8 mm
  • Type: Rectangular
  • Mechanical mounting: Threaded sleeves M3 (stainless steel)
  • Housing material: Plastic (ASA, PMMA)
  • Front (optics): PMMA
  • Connection types: Cable 4 pin, 2 m
  • Cable characteristics: PVC / PVC 4 x 0,08 mm²
